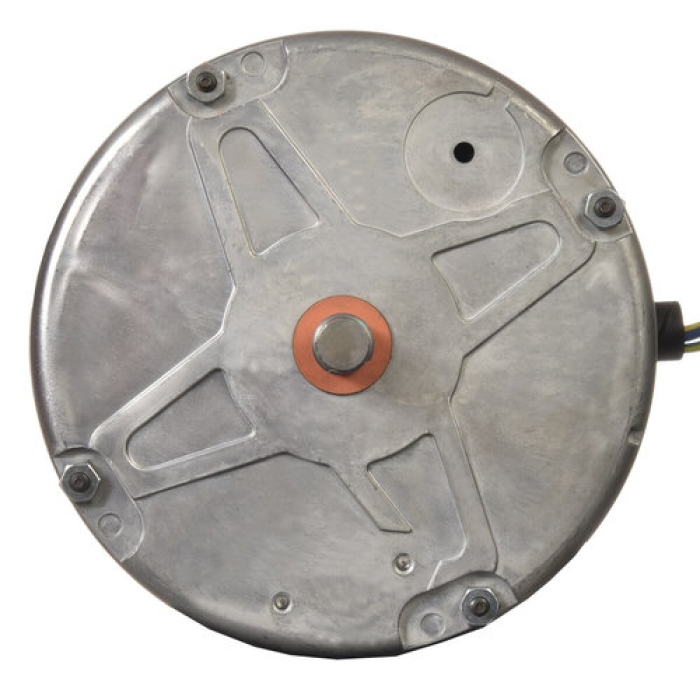

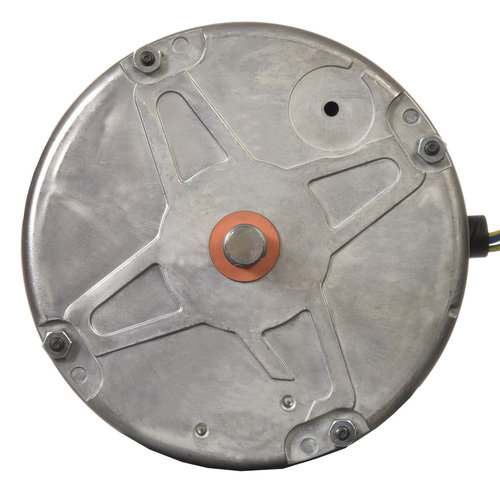

PROTECH™ 51-102728-19 Direct Drive Variable Speed Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 825 rpm Motor
PROTECH™ 51-102728-19 Direct Drive Variable Speed Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 825 rpm Motor
| Amperage Rating | : | 3.5 A |
| Bearing Type | : | Ball |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Fan Motor |
| Height | : | 9-1/16 in |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 825 rpm |
| Motor Type | : | ECM |
| Mounting Type | : | Shell Band, Thru-Bolt |
| NEMA Frame Size | : | 39 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 7.2 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 14.5 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 2-5/8 in |
| Shipping Weight | : | 10.55 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 5-5/8 in |
The ECM Blower Motor maintains its high efficiency across a range of operating speeds, which results in a significant reduction in energy use when the motor is run at reduced speeds. This makes these ProTech® blower motors ideal for use in creating two-stage outdoor compressors and heat pump-type units. In addition to reducing electrical use, two-stage compressors feature enhanced humidity removal, less temperature swing between cycles, more even temperatures throughout the home and quieter equipment operation.
PROTECH™ Direct Drive Variable Speed Condenser Fan Motor, 1/3 hp Motor HP, 208/230 V, 1 ph Phase, 825 rpm Motor RPM, ECM Motor, 39 Frame, 1 Speed, 1/2 in Shaft Diameter, 2-5/8 in Shaft Length, 9-1/16 in Height, 5-5/8 in Width, Counter Clockwise Rotation Direction, 3.5 A, Ball Bearing, 50/60 Hz Frequency, Shell Band, Thru-Bolt Mounting
