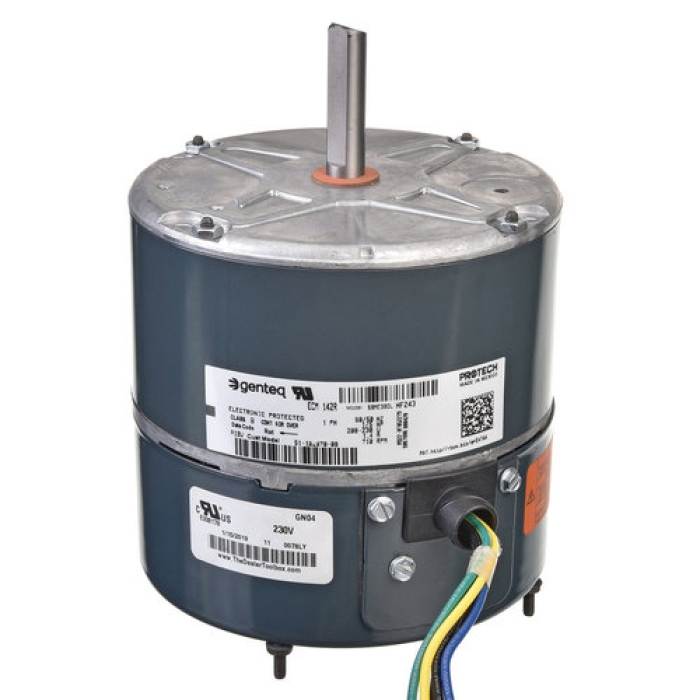

PROTECH™ 51-102870-08 Direct Drive Variable Speed Condenser Fan Motor, 1/5 hp Motor, 208/230 V, 1 ph, ECM Motor, 8 in H
PROTECH™ 51-102870-08 Direct Drive Variable Speed Condenser Fan Motor, 1/5 hp Motor, 208/230 V, 1 ph, ECM Motor, 8 in H
| Bearing Type | : | Ball |
| Compatible Models | : | RPQL |
| For Use With | : | RPQL Heat Pumps |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Fan Motor |
| Height | : | 8 in |
| Motor HP | : | 1/5 hp |
| Motor Type | : | ECM |
| Mounting Type | : | End-Boss |
| NEMA Frame Size | : | 39 |
| Packaged Depth | : | 7.3 in |
| Packaged Height | : | 6.85 in |
| Packaged Width | : | 14.5 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 2 in |
| Shipping Weight | : | 10.12 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 5-5/8 in |
These ECM Blower Motors maintain their high efficiency across a range of operating speeds, which results in a significant reduction in energy use when the motor is run at reduced speeds. This makes the ProTech® blow motor ideal for use in creating two-stage outdoor compressors and heat pump-type units. In addition to reducing electrical use, two-stage compressors feature enhanced humidity removal, less temperature swing between cycles, more even temperatures throughout the home and quieter equipment operation.
PROTECH™ Direct Drive Variable Speed Condenser Fan Motor, 1/5 hp Motor HP, 208/230 V, 1 ph Phase, ECM Motor, 39 Frame, 1/2 in Shaft Diameter, 2 in Shaft Length, 8 in Height, 5-5/8 in Width, Counter Clockwise Rotation Direction, For Use With: RPQL Heat Pumps, Ball Bearing, 50/60 Hz Frequency, End-Boss Mounting, Compatible Models: RPQL
