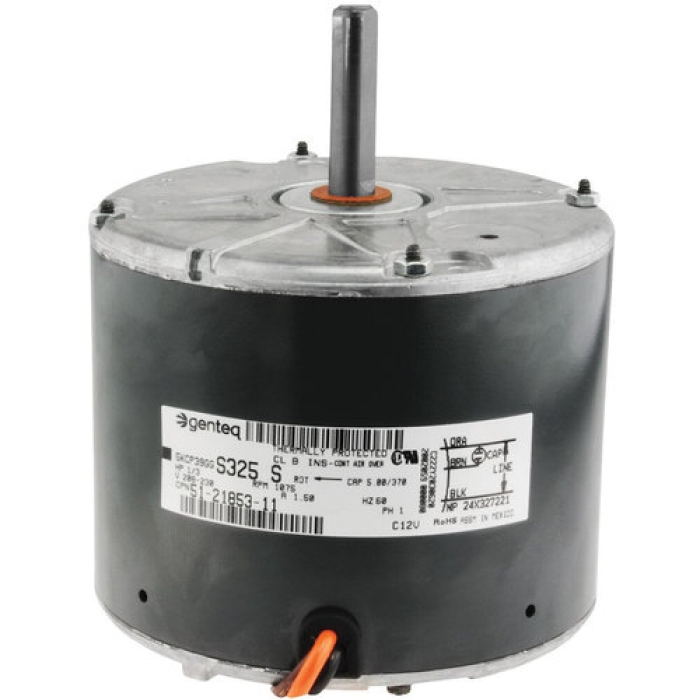

PROTECH™ 51-21853-11 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1.5 A
PROTECH™ 51-21853-11 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1.5 A
| Amperage Rating | : | 1.5 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | RADD, RAJB, RAKA, RAMA, RAMB, RAPA, RAPB, RKKA, RPDC, RPKA, RPLA, RPMB, RPMC, RPML, RRKA-A, RRMA-A |
| For Use With | : | RADD, RAJB, RAKA, RAMA, RAMB, RAPA, RAPB, RKKA, RPDC, RPKA, RPLA, RPMB, RPMC, RPML, RRKA-A and RRMA-A Packaged Gas/Electric Units |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Condenser Fan Motor |
| Height | : | 6-1/2 in |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | Shell Screw |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 7.1 in |
| Packaged Height | : | 6.85 in |
| Packaged Width | : | 14.7 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 2-1/16 in |
| Shipping Weight | : | 11.59 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 5-5/8 in |
AC fan motors, such as these ProTech® AC condenser fan motors, transfer heat from the refrigerant system into outdoor air, keeping AC compressors from overheating. The condenser fan motor replacement extends equipment life by replacing old or damaged heating and air conditioning motors in ventilators, fans and blowers. These ProTech® AC unit parts match the equipment's existing AC condenser fan motor from the original manufacturer to ensure faultless installation and consistent performance.
PROTECH™ Direct Drive Condenser Fan Motor, 1/3 hp Motor HP, 208/230 V, 1 ph Phase, 1075 rpm Motor RPM, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 2-1/16 in Shaft Length, 6-1/2 in Height, 5-5/8 in Width, Counter Clockwise Rotation Direction, 1.5 A, For Use With: RADD, RAJB, RAKA, RAMA, RAMB, RAPA, RAPB, RKKA, RPDC, RPKA, RPLA, RPMB, RPMC, RPML, RRKA-A and RRMA-A Packaged Gas/Electric Units, Sleeve Bearing, 60 Hz Frequency, Shell Screw Mounting, Compatible Models: RADD, RAJB, RAKA, RAMA, RAMB, RAPA, RAPB, RKKA, RPDC, RPKA, RPLA, RPMB, RPMC, RPML, RRKA-A, RRMA-A
