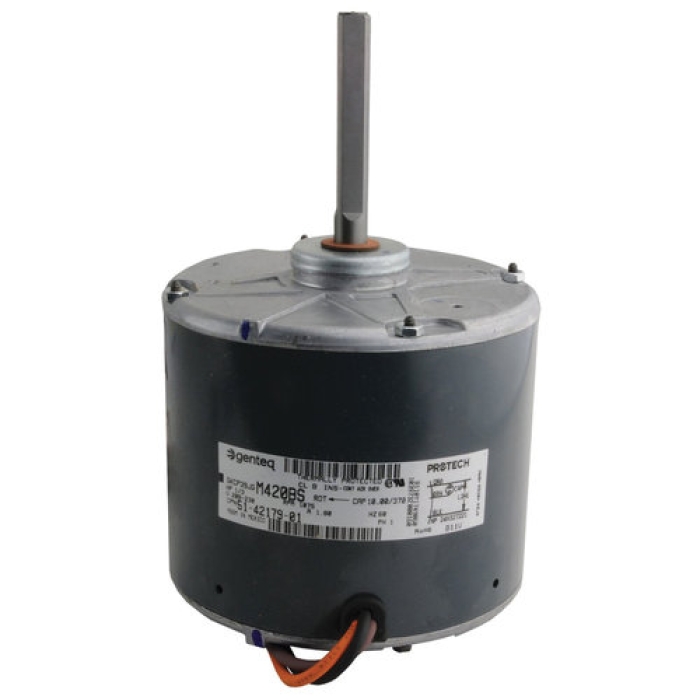

PROTECH™ 51-42179-01 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1.8 A
PROTECH™ 51-42179-01 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1.8 A
| Amperage Rating | : | 1.8 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | RKKA, RPDC |
| For Use With | : | RKKA and RPDC Packaged and Split Heat Pump Systems |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Condenser Fan Motor |
| Height | : | 8-7/16 in |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | Shell Band, Shell Screw |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 7.15 in |
| Packaged Height | : | 7.05 in |
| Packaged Width | : | 14.6 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3-11/16 in |
| Shipping Weight | : | 13.03 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 5-5/8 in |
This AC condenser fan motor transfers heat from the AC refrigerant, through the AC condenser coil and out to the outside environment. This cooling process prevents your air conditioner compressor from overheating. This ProTech® AC unit fan motor replacement extends equipment life by replacing old or damaged HVAC motors in ventilators, A/C fans and blowers. These HVAC/R parts match the original manufacturer's A/C fan motor to ensure seamless installation and consistent performance.
PROTECH™ Direct Drive Condenser Fan Motor, 1/3 hp Motor HP, 208/230 V, 1 ph Phase, 1075 rpm Motor RPM, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 3-11/16 in Shaft Length, 8-7/16 in Height, 5-5/8 in Width, Counter Clockwise Rotation Direction, 1.8 A, For Use With: RKKA and RPDC Packaged and Split Heat Pump Systems, Sleeve Bearing, 60 Hz Frequency, Shell Band, Shell Screw Mounting, Compatible Models: RKKA, RPDC
