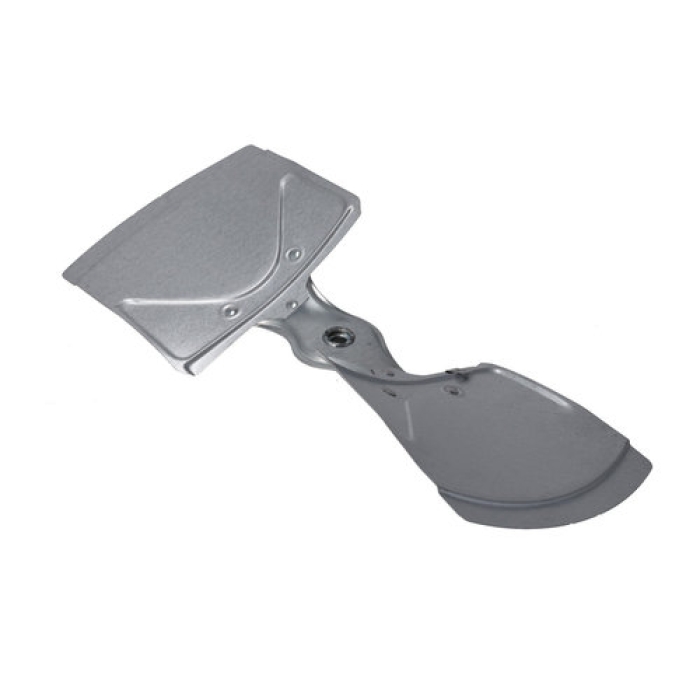

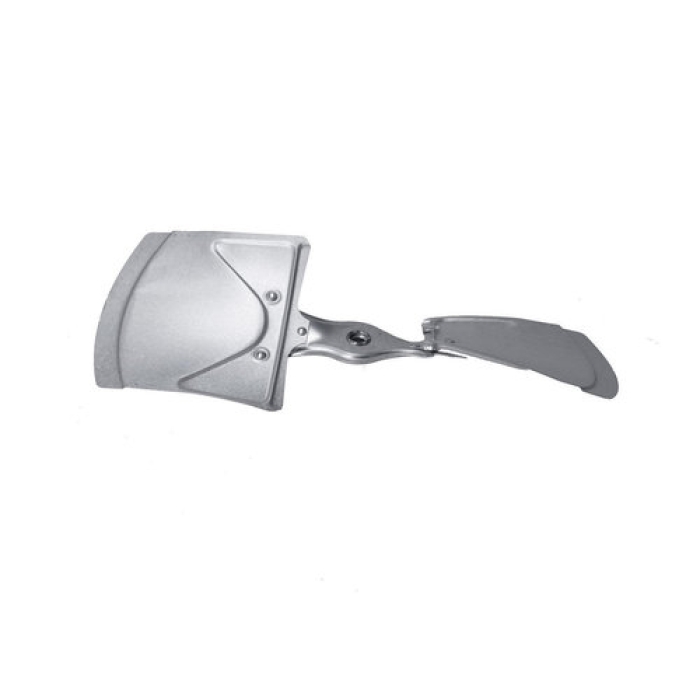

PROTECHâ„¢ 70-101323-37K Fan Blade Kit, 20 in Dia, 26 deg Blade Pitch, 2-Blade, 1/2 in Dia Bore, Counter Clockwise

PROTECHâ„¢ 70-101323-37K Fan Blade Kit, 20 in Dia, 26 deg Blade Pitch, 2-Blade, 1/2 in Dia Bore, Counter Clockwise

Manufacturer: Rheem Manufacturing
Brand: PROTECH™
Part #: 70066
MPN: 70-101323-37K
CPN:
Blade Pitch      :      26 deg
Bore Diameter      :      1/2 in
Diameter      :      20 in
Function Type      :      Fan Blade Kit
Number of Blades      :      2
Packaged Depth      :      25 in
Packaged Height      :      7 in
Packaged Width      :      26 in
Rotation Direction      :      Counter Clockwise
Shipping Weight      :      5 lb

This OEM fan blade replacement part has multiple 26 degree angled blades that rotate around a central hub, effectively drawing air through the condenser coils within the HVAC unit. The aerodynamic design of each of the 2 ProTech® fan blades ensures maximum airflow with minimal noise and vibration. These replacement blades for fans contribute to the overall optimized operation of your AC condenser unit or heat pump system.

PROTECH™ Fan Blade Kit, 20 in Diameter, 26 deg Blade Pitch, 2 Blades, 1/2 in Bore Diameter, Counter Clockwise Rotation Direction

Hub Location: Inlet Side
