| ETL Listed | : | Yes |
| Function Type | : | Monitor Kit |
| NEMA Enclosure Type | : | NEMA 3R |
| Number of Poles | : | 2 |
| Package Quantity | : | 1 Case |
| Packaged Depth | : | 9.2 in |
| Packaged Height | : | 6.2 in |
| Packaged Width | : | 11.8 in |
| Phase | : | 1 ph |
| Product Family | : | RSH Series |
| Product Type | : | Monitor Kit |
| Shipping Weight | : | 4 lb |
| Short Circuit Current Rating (SCCR) | : | 50 kA |
| Voltage Rating | : | 120/240 V |

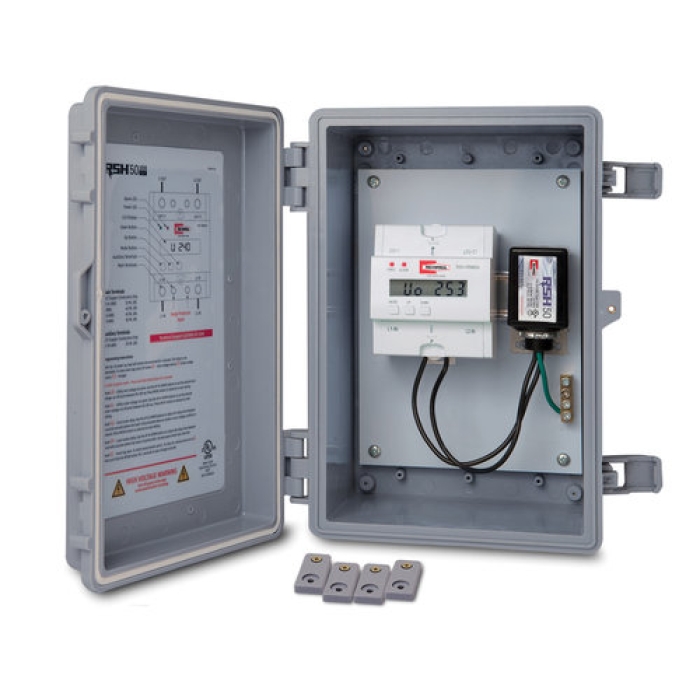

The RSH-50 VRM KIT combines the VRM60A and the RSH-50 in a NEMA 3R enclosure, for an all-in-one equipment solution. The RSH-50 uses Gas Discharge Tube (GDT) Technology along with Thermally Fused Metal Oxide Varistors (TMOV) for ultimate protection.
RectorSeal® Voltage Range Monitor Kit, 120/240 V, 1 ph Phase, NEMA 3R NEMA Enclosure Type, 50 kA Short Circuit Current (SCCR), 2 Poles, ETL Listed: Yes, Product Family: RSH Series
RSH-50 Surge Protector and Voltage Range Monitor inside a NEMA 3R/IP66 enclosureOver-Under Voltage Protection with Adjustable Auto Cut-Off and Auto Restore Delay Time; Over-Under Voltage Cutoff Delay can be adjusted from 0.5 to 60 Seconds; Load Restore Delay adjustable from 1 to 600 Seconds 120/240 Single Phase Magnetic Latching Relays for Maximum Reliability Large Easy to Read LCD Digital Display with Dual Red and Green LED Diagnostics Indicators Easy Set Up, Field Programmable, No Laptop or Programming Tool Required
