| ASTM Specifications | : | ASTM F877 |
| Body Material | : | PVC |
| Depth | : | 3 in |
| Function Type | : | Outlet Box |
| Height | : | 4-3/4 in |
| Inlet Connection Size | : | 1/2 in |
| Lead-Free Compliant | : | Yes |
| Product Family | : | EVERLOC+® |
| Product Type | : | Outlet Box |
| Width | : | 8 in |
EVERLOC+ compression-sleeve valves provide the same reliable connection as other EVERLOC+ compression-sleeve fittings. The maximum temperature and pressure ratings of the EVERLOC+ compression-sleeve fitting system is in accordance with ASTM F877 and CSA B137.5 for SDR9 PEX, see REHAU pipe product submittals for ratings. Installation is performed with EVERLOC+ compression-sleeve tools. Follow all published REHAU Technical Guidelines. All EVERLOC+ fittings and sleeves comply with the lead-free (LF) requirements of the U.S. Safe Drinking Water Act.

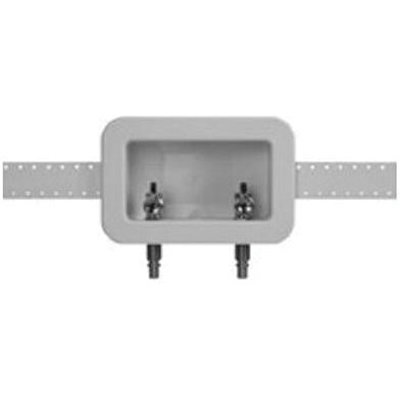

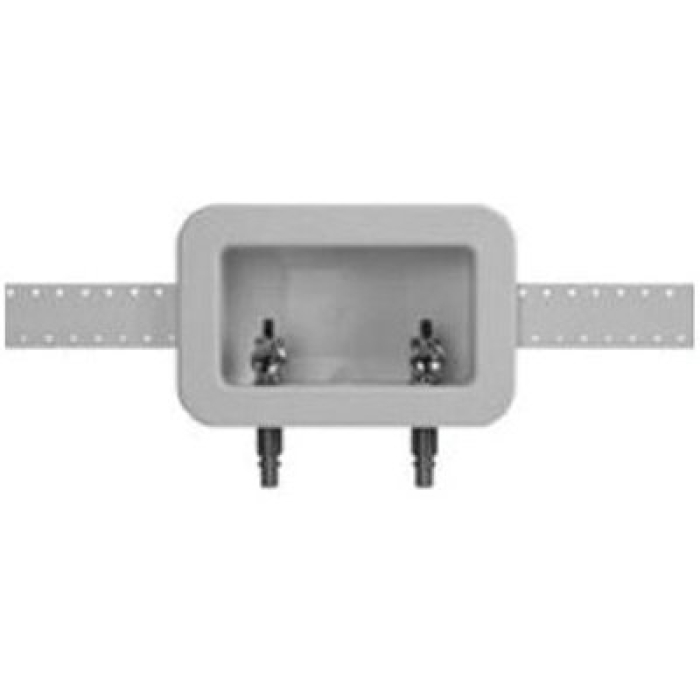

Rehau® EVERLOC+® Universal Washer Outlet Box, 1/2 in Inlet Connection, PVC Body, 4-3/4 in Height, 8 in Width, 3 in Depth, ASTM Specifications: ASTM F877, Lead-Free Compliant: Yes
The EVERLOC+ Universal Washer Outlet Box can be mounted with the valves on the top or bottomThe box comes ready for installation with two support brackets, two-piece uninstalled 1/2" EVERLOC+ LF brass valves, two knockout drain caps and 2" socket hubs.
