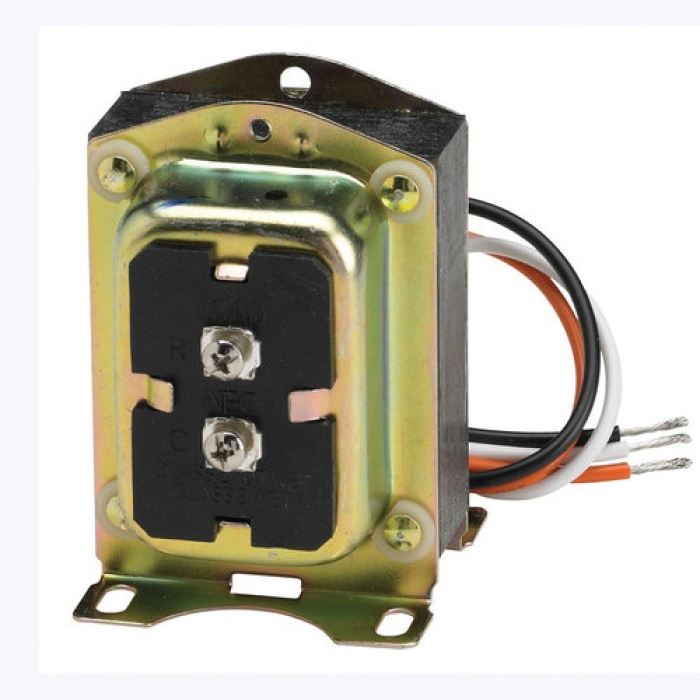

resideo AT140A1000/U Multi-System-Mount Transformer, 120 V Primary, 27 V Secondary, 40 VA, 60 Hz, Screw Terminal
resideo AT140A1000/U Multi-System-Mount Transformer, 120 V Primary, 27 V Secondary, 40 VA, 60 Hz, Screw Terminal
resideo AT140A1000/U Multi-System-Mount Transformer, 120 V Primary, 27 V Secondary, 40 VA, 60 Hz, Screw Terminal

resideo AT140A1000/U Multi-System-Mount Transformer, 120 V Primary, 27 V Secondary, 40 VA, 60 Hz, Screw Terminal

resideo AT140A1000/U Multi-System-Mount Transformer, 120 V Primary, 27 V Secondary, 40 VA, 60 Hz, Screw Terminal

Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 266
MPN: AT140A1000/U
CPN:
Depth      :      3.13 in
Electrical Connection Type      :      Screw Terminal
Frequency      :      60 Hz
Function Type      :      Multi-System-Mount Transformer
Height      :      3.19 in
Operating Temperature Rating      :      -20 to 105 deg F
UL Listed      :      Yes
VA Rating      :      40 VA
Voltage Rating      :      120 V Primary, 27 V Secondary
Width      :      2.38 in

These general purpose transformers provide power to 24 Vac circuits. Although typically used in heating/cooling control systems, they can be used in any application that doesn't exceed the load ratings. AT140 is rated at 40 VA. All models meet NEC Class 2 not wet, and conform to UL Standard 1585.

resideo Multi-System-Mount Transformer, 120 V Primary, 27 V Secondary, VA Rating: 40 VA, 60 Hz Frequency, Screw Terminal Electrical Connection, 3.19 in Height, 2.38 in Width, 3.13 in Depth, -20 to 105 deg F Operating Temperature, UL Listed: Yes

  • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_AT140A1000_U_Catalog.pdf
  • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_AT140A1000_U_Instruction_Installation_Manual.pdf
  • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/resideo_AT140A1000_U_Specification_Sheet.pdf
