resideo R8222D1014/U General Purpose Relay With DPDT Switching, 24 V Control, 2-Pole, DPDT Switch Contact, 50/60 Hz
resideo R8222D1014/U General Purpose Relay With DPDT Switching, 24 V Control, 2-Pole, DPDT Switch Contact, 50/60 Hz
Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 7886
MPN: R8222D1014/U
CPN:
| Control Voltage | : | 24 V |
| Depth | : | 2.16 in |
| Electrical Connection Type | : | Double Quick-Connect |
| Frequency | : | 50/60 Hz |
| Function Type | : | Relay |
| Height | : | 1.86 in |
| Number of Poles | : | 2 |
| Operating Temperature Rating | : | -20 to 155 deg F |
| Product Type | : | Relay |
| Switch Contact Type | : | DPDT |
| UL Listed | : | Yes |
| VA Rating | : | 12 VA |
| Width | : | 2.35 in |

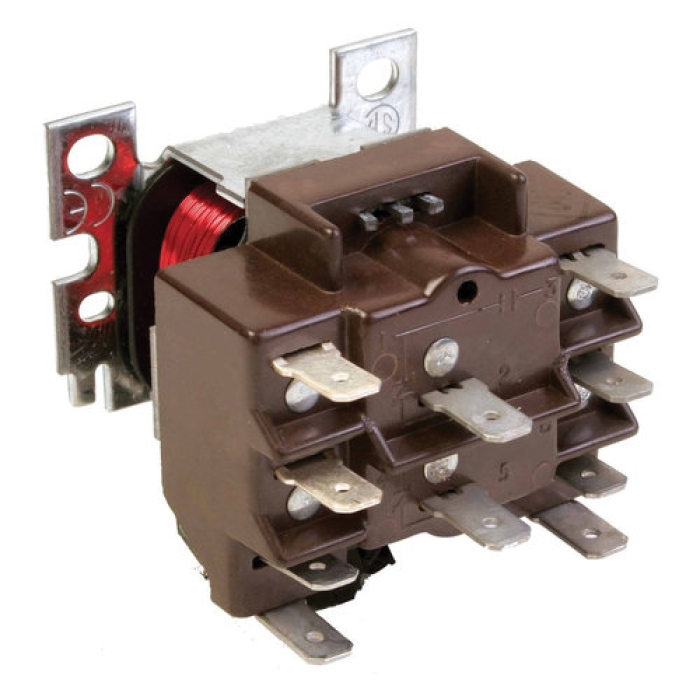

This general purpose switching relay from Resideo has a 24 Vac coil and works with low voltage applications. The R8222 is available for millivolt, pilot duty, and power pole applications. These relays are suitable for refrigeration and air conditioning equipment, appliances, vending machines, and other applications requiring general purpose switching.
resideo General Purpose Relay, 24 V Control, 2 Poles, DPDT Switch Contact Type, 50/60 Hz Frequency, Double Quick-Connect Electrical Connection, 1.86 in Height, 2.35 in Width, 2.16 in Depth, VA Rating: 12 VA, -20 to 155 deg F Operating Temperature, UL Listed: Yes

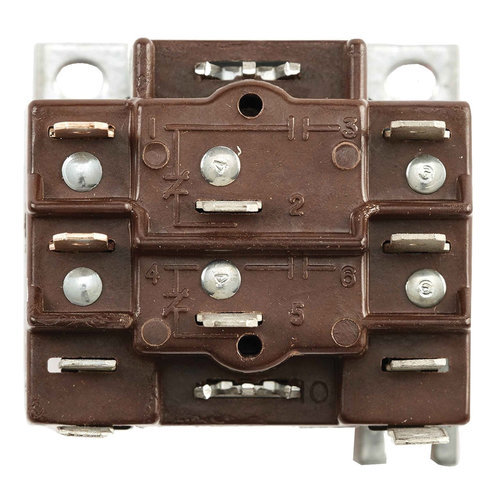

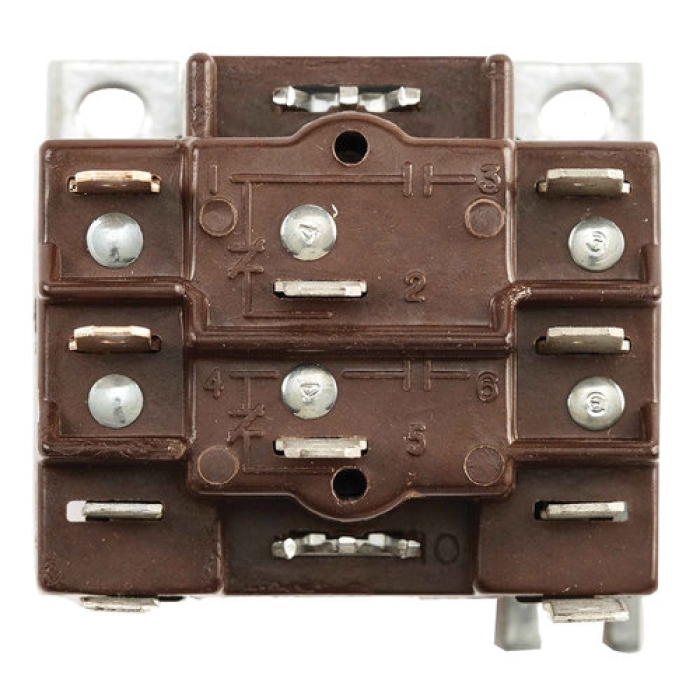

Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operationOpen coil assures cooler operation Laminated magnet construction for higher efficiency Base designed for easy replacement of competitive relays Plug compatible with Steveco 90
