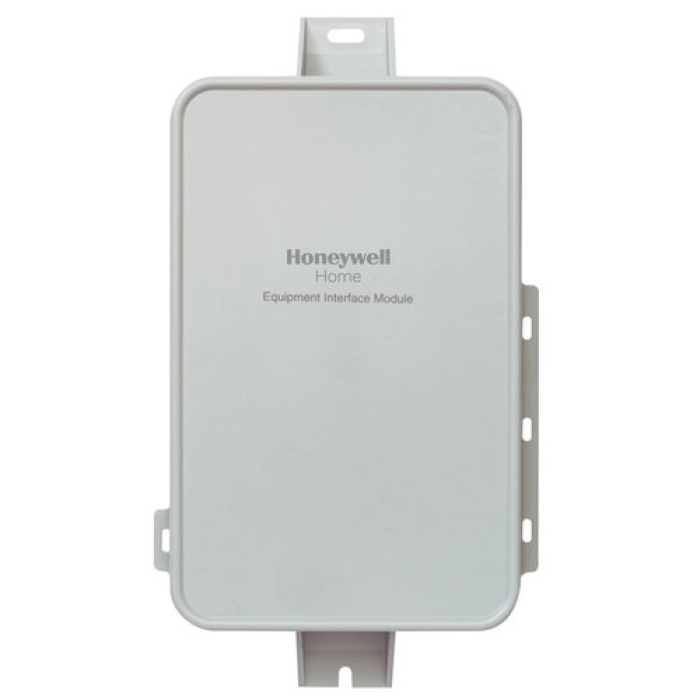

resideo Prestige® THM5421R1021/U 2-Wire IAQ Equipment Interface Module, 18-30 V, Hardwired, 1 A Cool and Heat, 0.5 A Fan
resideo Prestige® THM5421R1021/U 2-Wire IAQ Equipment Interface Module, 18-30 V, Hardwired, 1 A Cool and Heat, 0.5 A Fan
| Amperage Rating | : | 1 A Cool and Heat, 0.5 A Fan |
| Color | : | Gray |
| Depth | : | 1-5/8 in |
| For Use With | : | All THX9421R5021 Prestige® 2-Wire IAQ Thermostats and All versions of Prestige® IAQ Thermostats and VisionPRO® Thermostats |
| Height | : | 9-5/16 in |
| Installation / Mounting Type | : | Vertical |
| Number of Stages | : | 4H/2C, 3H/2C |
| Operating Temperature Rating | : | -40 to 165 deg F |
| Power Source | : | Hardwired |
| Product Type | : | Interface Module |
| Voltage Rating | : | 18-30 V |
| Width | : | 4-13/16 in |
Equipment Interface Module controls up to 4-stages of heat and 2-stages of cool in a heat pump system and up to 3-stages of heat and 2-stages of cool in a conventional system. Three sets of Universal IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices.
resideo Prestige® 2-Wire IAQ Equipment Interface Module, Hardwired Power Source, 1 A Cool and Heat, 0.5 A Fan, Vertical Installation / Mounting, 9-5/16 in Height, 4-13/16 in Width, 1-5/8 in Depth, 4H/2C, 3H/2C Stages, For Use With: All THX9421R5021 Prestige® 2-Wire IAQ Thermostats and All versions of Prestige® IAQ Thermostats and VisionPRO® Thermostats, Gray, -40 to 165 deg F Operating Temperature
