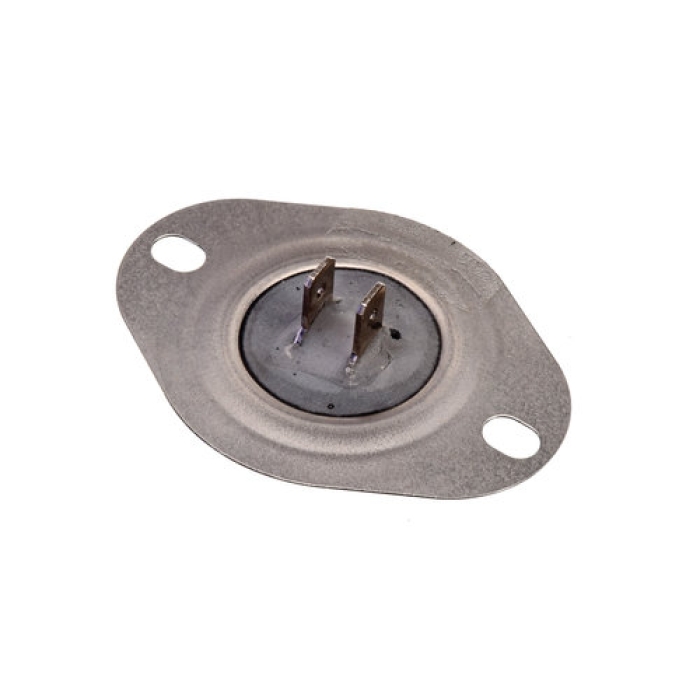

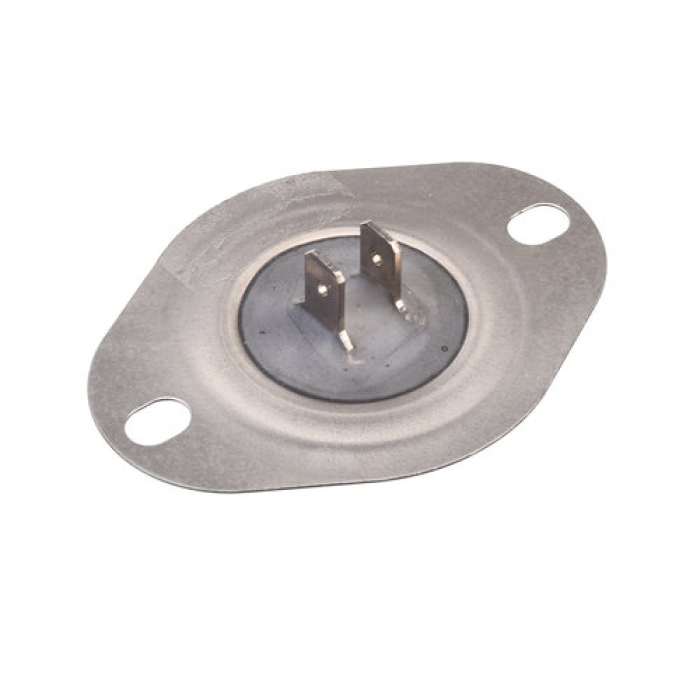

Rheem® 47-106130-01 Limit Switch, 26 V Control, 1-Pole, SPST Switch Contact, NC, Auto Reset, 125 deg F Cut In
Rheem® 47-106130-01 Limit Switch, 26 V Control, 1-Pole, SPST Switch Contact, NC, Auto Reset, 125 deg F Cut In
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 81451
MPN: 47-106130-01
CPN:
| Connection Size | : | 1/4 in |
| Contact Configuration | : | NC |
| Control Voltage | : | 26 V |
| Cut In Temperature | : | 125 deg F |
| Cut Out Temperature | : | 145 deg F |
| Differential Temperature | : | 20 deg F |
| Electrical Connection Type | : | Quick-Connect |
| Function Type | : | Limit Switch |
| Mounting Type | : | Flanged |
| Number of Poles | : | 1 |
| Packaged Depth | : | 3.4 in |
| Packaged Height | : | 0.75 in |
| Packaged Width | : | 3.85 in |
| Product Type | : | Limit Switch |
| Reset Type | : | Auto |
| Shipping Weight | : | 0.2 lb |
| Switch Contact Type | : | SPST |
| Switching Current | : | 1 A |
Rheem® Limit Switch, 26 V Control, 1 Poles, SPST Switch Contact Type, Contact Configuration: NC, Auto Reset, 125 deg F Cut In Temperature, 145 deg F Cut Out Temperature, 20 deg F Differential Temperature, Quick-Connect Electrical Connection, Flanged Mounting, 1 A Switching Current, 1/4 in Connection
