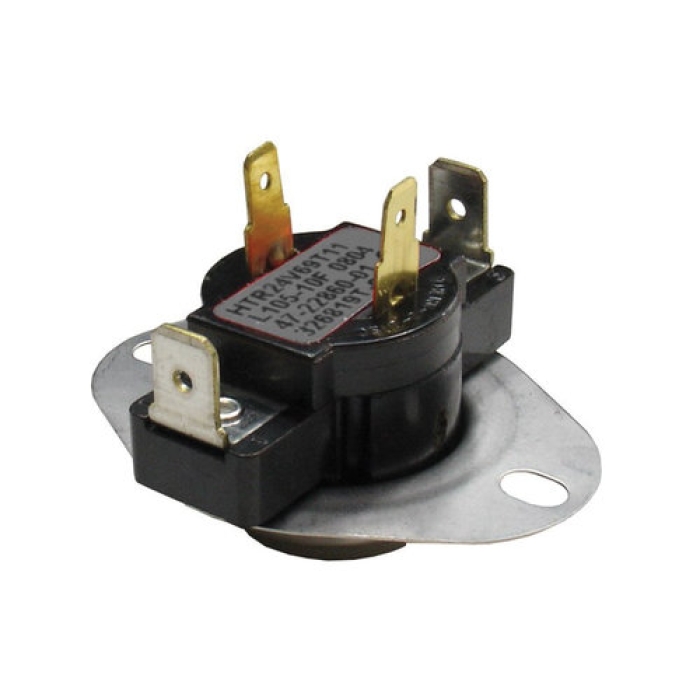

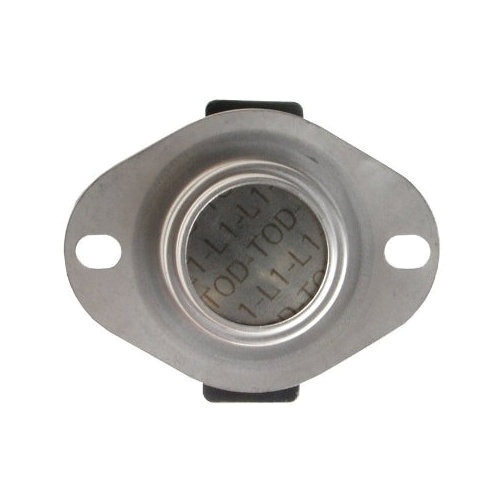

Rheem® 47-22860-02 General Purpose Limit Switch, 230 V Control, 1-Pole, SPST Switch Contact, NC, Auto Reset, Blue
Rheem® 47-22860-02 General Purpose Limit Switch, 230 V Control, 1-Pole, SPST Switch Contact, NC, Auto Reset, Blue
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 3234
MPN: 47-22860-02
CPN:
| Color | : | Blue |
| Compatible Models | : | RGLG, RGLH, RGSA, RGTA, RGTJ, RGTK, RGVG |
| Connection Size | : | 1/4 x 3/16 in |
| Contact Configuration | : | NC |
| Control Voltage | : | 230 V |
| Cut In Temperature | : | 100 deg F |
| Cut Out Temperature | : | 110 deg F |
| Differential Temperature | : | 10 deg F |
| Electrical Connection Type | : | Quick-Connect x Quick-Connect |
| For Use With | : | RGLG, RGLH, RGSA, RGTA, RGTJ, RGTK and RGVG Gas Furnaces |
| Function Type | : | Limit Switch |
| Mounting Type | : | Flanged |
| Number of Poles | : | 1 |
| Packaged Depth | : | 3.45 in |
| Packaged Height | : | 1.85 in |
| Packaged Width | : | 3.8 in |
| Product Type | : | Limit Switch |
| Reset Type | : | Auto |
| Shipping Weight | : | 0.04 lb |
| Switch Contact Type | : | SPST |
| Switching Current | : | 25 A |
Rheem® General Purpose Limit Switch, 230 V Control, 1 Poles, SPST Switch Contact Type, Contact Configuration: NC, Auto Reset, 100 deg F Cut In Temperature, 110 deg F Cut Out Temperature, 10 deg F Differential Temperature, Quick-Connect x Quick-Connect Electrical Connection, For Use With: RGLG, RGLH, RGSA, RGTA, RGTJ, RGTK and RGVG Gas Furnaces, Blue, Flanged Mounting, 25 A Switching Current, 1/4 x 3/16 in Connection, Compatible Models: RGLG, RGLH, RGSA, RGTA, RGTJ, RGTK, RGVG
