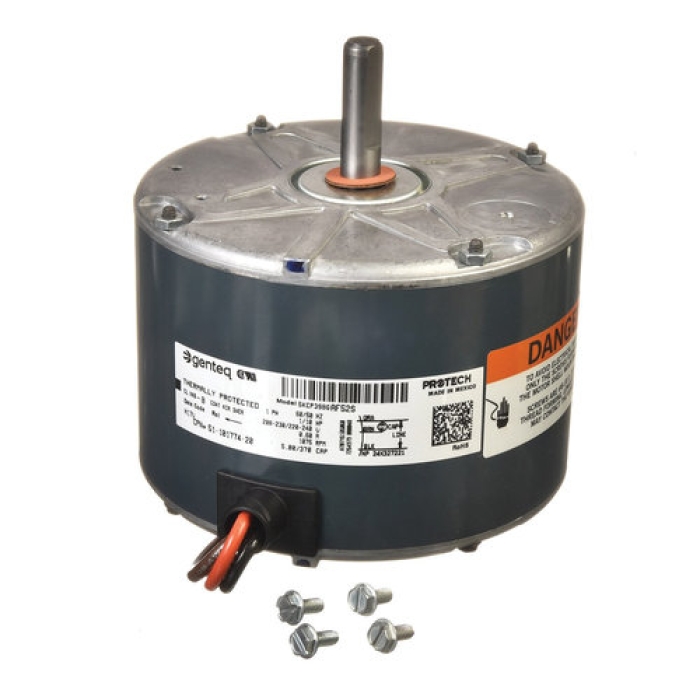

Rheem® 51-101774-20 Direct Drive Condenser Fan Motor, 1/10 hp Motor, 208/220/230 V, 1 ph, 1075 rpm Motor, 48 NEMA
Rheem® 51-101774-20 Direct Drive Condenser Fan Motor, 1/10 hp Motor, 208/220/230 V, 1 ph, 1075 rpm Motor, 48 NEMA
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 63401
MPN: 51-101774-20
CPN:
| Amperage Rating | : | 0.6 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | RANL |
| For Use With | : | RANL Air Conditioners |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Condenser Fan Motor |
| Height | : | 5-27/32 in |
| Motor HP | : | 1/10 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | End-Boss, Shell Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 7.25 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 14.45 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 1-3/4 in |
| Shipping Weight | : | 8.36 lb |
| Voltage Rating | : | 208/220/230 V |
| Width | : | 5-5/8 in |
Rheem® Direct Drive Condenser Fan Motor, 1/10 hp Motor HP, 208/220/230 V, 1 ph Phase, 1075 rpm Motor RPM, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 1-3/4 in Shaft Length, 5-27/32 in Height, 5-5/8 in Width, Counter Clockwise Rotation Direction, 0.6 A, For Use With: RANL Air Conditioners, Sleeve Bearing, 50/60 Hz Frequency, End-Boss, Shell Band Mounting, Compatible Models: RANL
