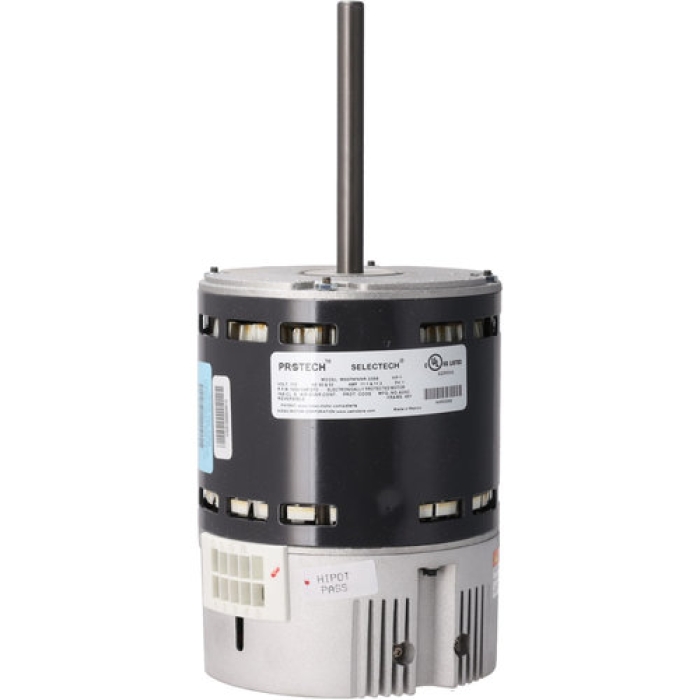

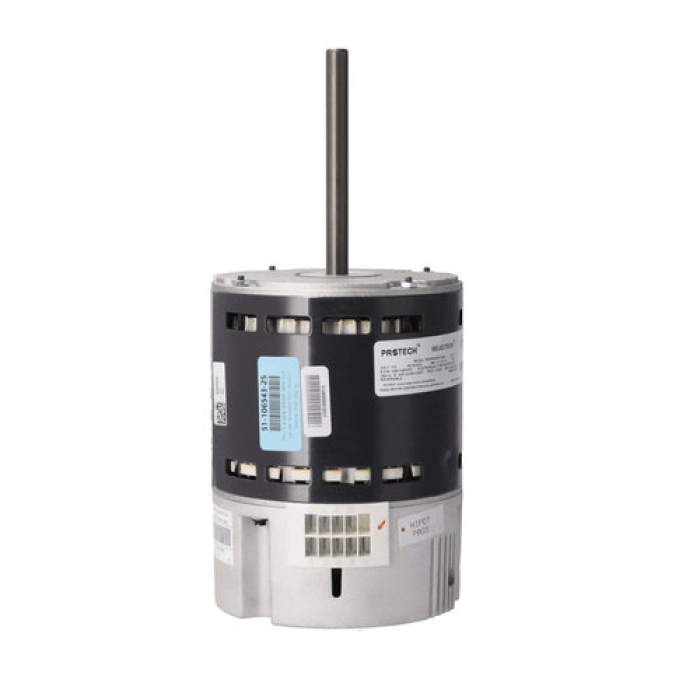

Rheem® 51-106543-25 Direct Drive Blower Motor, 1 hp Motor, 120 V, 1050 rpm Motor, SelecTech Gen 3 Motor, Reversible
Rheem® 51-106543-25 Direct Drive Blower Motor, 1 hp Motor, 120 V, 1050 rpm Motor, SelecTech Gen 3 Motor, Reversible
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 94821
MPN: 51-106543-25
CPN:
| Amperage Rating | : | 11.1 A |
| Bearing Type | : | Ball |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Blower Motor |
| Height | : | 12-7/16 in |
| Motor HP | : | 1 hp |
| Motor RPM | : | 1050 rpm |
| Motor Type | : | SelecTech Gen 3 |
| Mounting Type | : | Shell Band |
| NEMA Frame Size | : | 48Y |
| Packaged Depth | : | 5.5 in |
| Packaged Height | : | 5.5 in |
| Packaged Width | : | 11 in |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 5 in |
| Shipping Weight | : | 12.3 lb |
| Voltage Rating | : | 120 V |
| Width | : | 5-39/64 in |
ProTech® motors are designed to operate in the demanding environments found in residential and light commercial HVAC systems. These patented SelecTech® motors achieve current governmental regulated efficiency targets through efficient motor design.
Rheem® Direct Drive Blower Motor, 1 hp Motor HP, 120 V, 1050 rpm Motor RPM, SelecTech Gen 3 Motor, Reversible Rotation Direction, Ball Bearing, 1/2 in Shaft Diameter, 48Y Frame, 5 in Shaft Length, 12-7/16 in Height, 5-39/64 in Width, 11.1 A, 60 Hz Frequency, Shell Band Mounting
ProTech® OEM replacement motorMotor Power:1 horsepower (hp) for 120V voltage applications Programmed motor For on-site programming, please useK33C motorprogrammer
