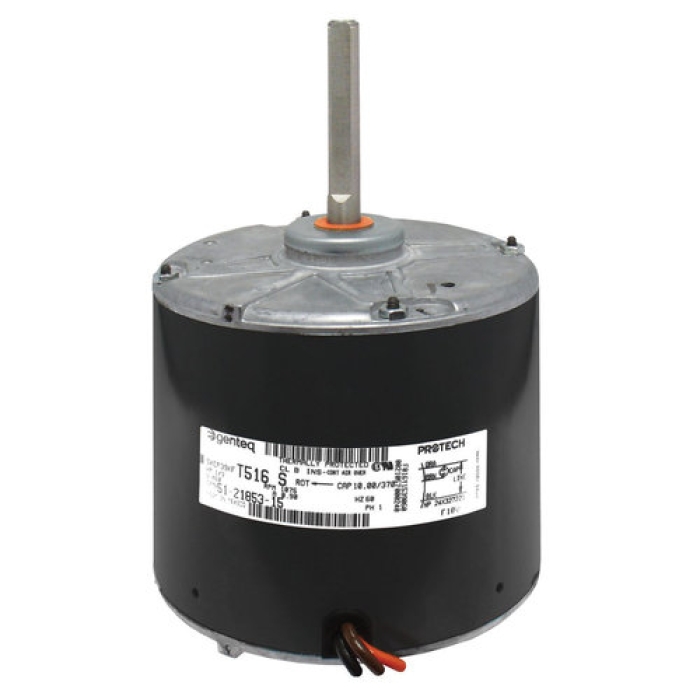

Rheem® 51-21853-15 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 460 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1-Speed
Rheem® 51-21853-15 Direct Drive Condenser Fan Motor, 1/3 hp Motor, 460 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1-Speed
| Amperage Rating | : | 0.9 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | RKKA, RPDC |
| For Use With | : | RKKA, RPDC Packaged and Split Heat Pump Systems |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Condenser Fan Motor |
| Height | : | 8-11/16 in |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | Shell Band, Shell Screw |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 7.35 in |
| Packaged Height | : | 6.95 in |
| Packaged Width | : | 14.5 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3-11/16 in |
| Shipping Weight | : | 13.52 lb |
| Voltage Rating | : | 460 V |
| Width | : | 5-5/8 in |
An AC unit condenser fan motor helps prevent the AC compressor from overheating by moving heat outside, which can extend the lifespan of your HVAC equipment. Using a ProTech® condensing fan motor that matches your model's specifications ensures good performance and reduces the risk of breakdowns. This AC fan motor is thermally protected and has a sleeve bearing for added durability and less maintenance. Choosing a reliable replacement part, like this condenser motor, can help reduce repairs and keep your heating, ventilation and air conditioning unit running smoothly.
Rheem® Direct Drive Condenser Fan Motor, 1/3 hp Motor HP, 460 V, 1 ph Phase, 1075 rpm Motor RPM, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 3-11/16 in Shaft Length, 8-11/16 in Height, 5-5/8 in Width, Counter Clockwise Rotation Direction, 0.9 A, For Use With: RKKA, RPDC Packaged and Split Heat Pump Systems, Sleeve Bearing, 60 Hz Frequency, Shell Band, Shell Screw Mounting, Compatible Models: RKKA, RPDC
