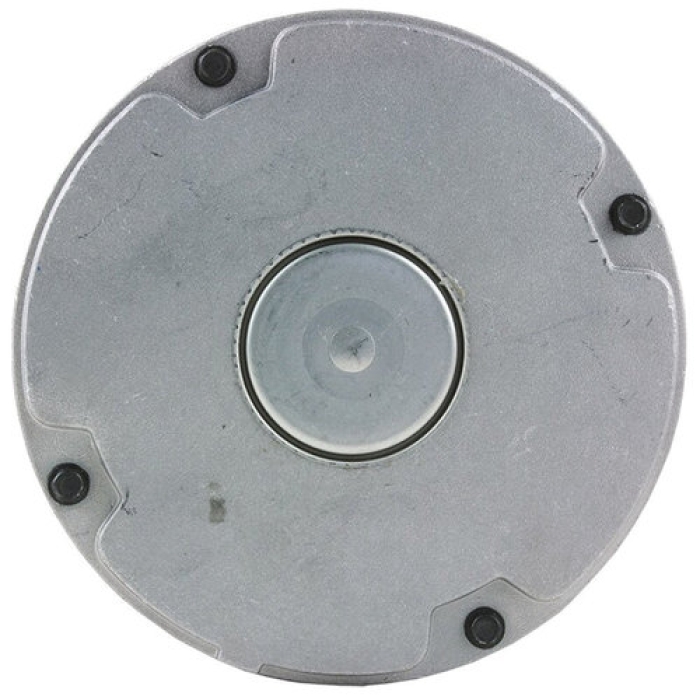

Rheem® 51-21854-18 Direct Drive Condenser Fan Motor, 1/5 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1-Speed
Rheem® 51-21854-18 Direct Drive Condenser Fan Motor, 1/5 hp Motor, 208/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1-Speed
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 16113
MPN: 51-21854-18
CPN:
| Amperage Rating | : | 1.25 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | RADD |
| For Use With | : | RADD Condensing Units |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Condenser Fan Motor |
| Height | : | 7-1/4 in |
| Motor HP | : | 1/5 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | Shell Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 7.3 in |
| Packaged Height | : | 7.1 in |
| Packaged Width | : | 13 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3-11/16 in |
| Shipping Weight | : | 9.29 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 5-5/8 in |
Rheem® Direct Drive Condenser Fan Motor, 1/5 hp Motor HP, 208/230 V, 1 ph Phase, 1075 rpm Motor RPM, 48 Frame, 1 Speed, 1/2 in Shaft Diameter, 3-11/16 in Shaft Length, 7-1/4 in Height, 5-5/8 in Width, Counter Clockwise Rotation Direction, 1.25 A, For Use With: RADD Condensing Units, Sleeve Bearing, 60 Hz Frequency, Shell Band Mounting, Compatible Models: RADD
