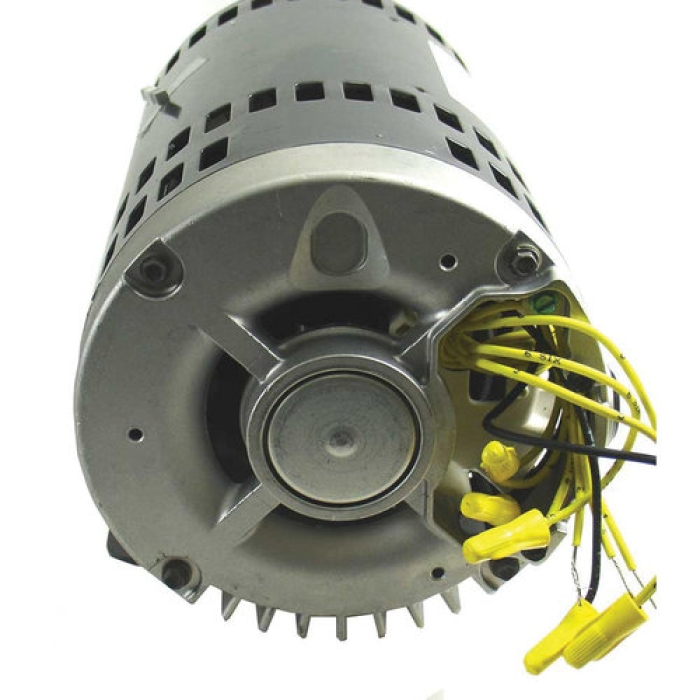

Rheem® 51-42537-01 Belt Drive Blower Motor, 3 hp Motor, 208/220/230/380-415/460 V, 3 ph, 1725 rpm Motor, 1-Speed
Rheem® 51-42537-01 Belt Drive Blower Motor, 3 hp Motor, 208/220/230/380-415/460 V, 3 ph, 1725 rpm Motor, 1-Speed
| Amperage Rating | : | 4.6 to 9.2 A |
| Bearing Type | : | Ball |
| Compatible Models | : | RHGE, RKKB, RPDC |
| For Use With | : | RHGE, RKKB, RPDC Packaged and Split Heat Pump Systems |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Blower Motor |
| Height | : | 13-5/16 in |
| Motor HP | : | 3 hp |
| Motor RPM | : | 1725 rpm |
| Mounting Type | : | Platform |
| NEMA Frame Size | : | 56HZ |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 11.25 in |
| Packaged Height | : | 10.9 in |
| Packaged Width | : | 18.65 in |
| Phase | : | 3 ph |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 7/8 in |
| Shaft Length | : | 2-1/4 in |
| Shipping Weight | : | 44.42 lb |
| Voltage Rating | : | 208/220/230/380-415/460 V |
| Width | : | 6-1/2 in |
These ProTech® HVAC motors are crucial because they support heating and cooling systems, ensure efficient operation, maintain good internal air quality and ensure consistent comfort. Problems with your blower motor could include unusual noises, reduced airflow or intermittent operation. Recognizing these blower motor issues early can help prevent additional home HVAC system damage by getting a replacement blower motor as soon as possible.
Rheem® Belt Drive Blower Motor, 3 hp Motor HP, 208/220/230/380-415/460 V, 3 ph Phase, 1725 rpm Motor RPM, 1 Speed, Reversible Rotation Direction, Ball Bearing, 7/8 in Shaft Diameter, 56HZ Frame, 2-1/4 in Shaft Length, 13-5/16 in Height, 6-1/2 in Width, 4.6 to 9.2 A, For Use With: RHGE, RKKB, RPDC Packaged and Split Heat Pump Systems, 50/60 Hz Frequency, Platform Mounting, Compatible Models: RHGE, RKKB, RPDC
