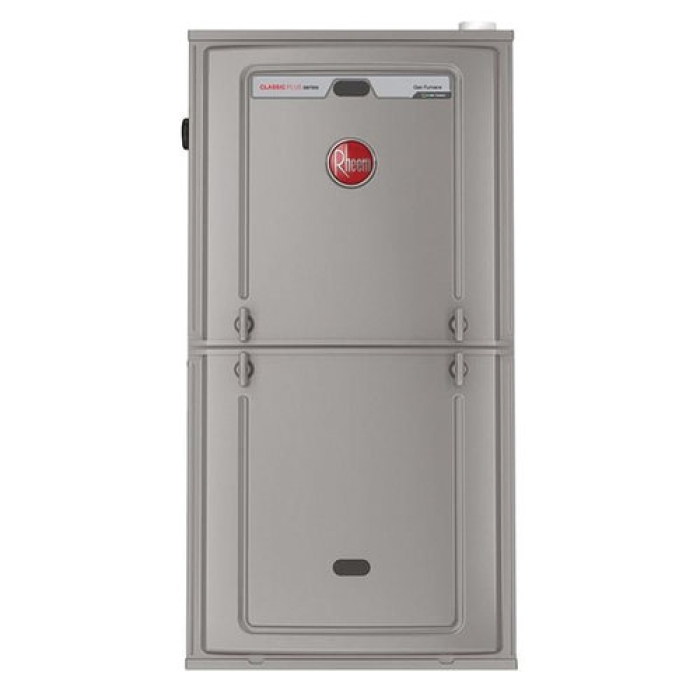

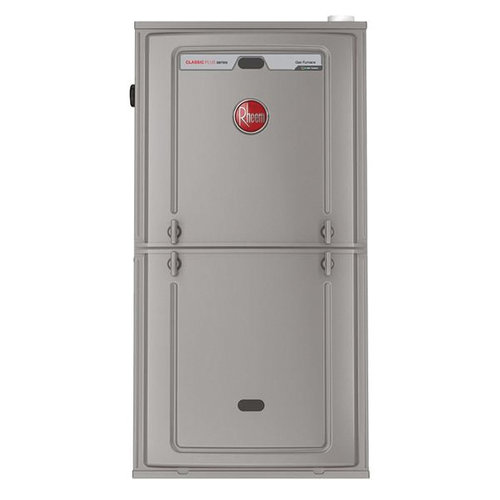

Rheem® Endeavor® Line Classic Plus® Series R962V1155A24M4SCAP Gas Furnace, 112000 Btu/hr Input Heating BTU, 96 % AFUE
Rheem® Endeavor® Line Classic Plus® Series R962V1155A24M4SCAP Gas Furnace, 112000 Btu/hr Input Heating BTU, 96 % AFUE
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 89566
MPN: R962V1155A24M4SCAP
CPN:
| AFUE | : | 96 % |
| Air Flow Direction | : | 4-Way, Multi-Position |
| BTU Heating Input | : | 112000 Btu/hr |
| BTU Heating Output | : | 109000 Btu/hr |
| CFM Airflow | : | 1980 cfm Cooling, 1650 cfm Heating |
| Communicating | : | Yes |
| Depth | : | 28-1/16 in |
| Energy Star Certified | : | Yes |
| Height | : | 34 in |
| Ignition Type | : | Direct Spark |
| Model Number | : | R962V |
| Motor Type | : | ECM |
| Number of Stages | : | 2 |
| Product Family | : | Endeavor® Line Classic Plus® Series |
| Shipping Weight | : | 190 lb |
| Tonnage | : | 5 ton |
| Width | : | 24-1/2 in |
Rheem® Endeavor® Gas Furnace, 109000 Btu/hr Heating Output, 96 % AFUE, 2 Stages, 4-Way, Multi-Position Air Flow Direction, 1980 cfm Cooling, 1650 cfm Heating, ECM Motor, 24-1/2 in Width, 34 in Height, 28-1/16 in Depth, Direct Spark Ignition, Communicating: Yes, Tonnage: 5 ton, Energy Star Certified: Yes, Product Family: Line Classic Plus® Series
PlusOne® Energy Efficiency: ENERGY STAR® certified, featuring 96% AFUE across all model sizesPlusOne® Diagnostics: With the Rheem Contractor & EcoNet® Apps, built-in EcoNet® & Bluetooth®1 technology makes monitoring, troubleshooting and repairing the product easier than ever before Dip Switch Free Installation Commissioning via Bluetooth® Technology: Seamless final install step without DIP switch configuration using the Rheem Contractor App PlusOne® Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity PlusOne® Water Management System: Rheem-exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked, and also alerts the contractor via diagnostic code Two-Stage Heating: Furnace operation mainly stays at low capacity around 60-65%, but will switch to high capacity to deliver stable heat distribution Constant CFM Motor: Truly variable speed technology allows for ultimate humidity control, quieter sound levels and year-round energy savings Quieter Operation2: A fully insulated blower cabinet, solid bottom and truly variable speed air_ow technology makes this one of the quieter options available EcoNet® Enabled Furnace: The latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy savings Allows on-the-go control and receipt of system alerts by the homeowner via the EcoNet® Smart Thermostat and EcoNet® App
