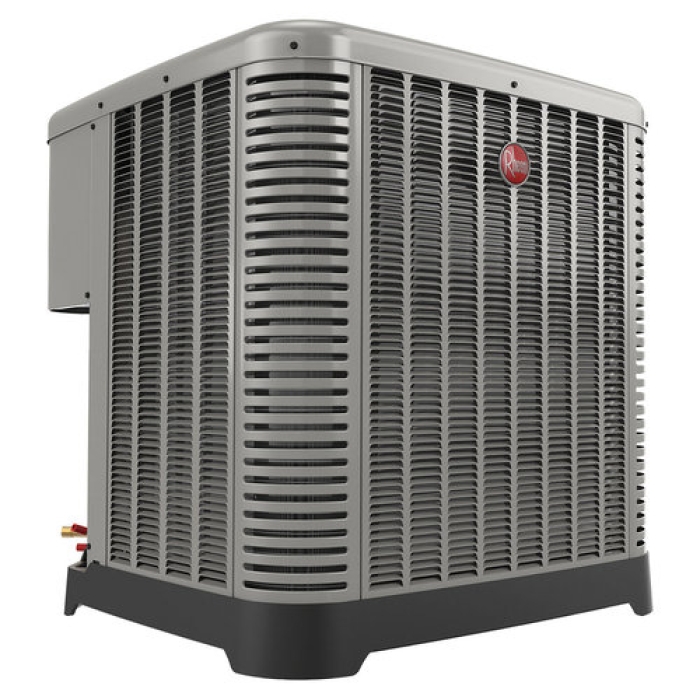

Rheem® Endeavor® Line Classic® Series iM RA13NY42AJ1NA Air Conditioner, 3.5 ton, R-454B Refrigerant, 1-Stage, 9 EER2
Rheem® Endeavor® Line Classic® Series iM RA13NY42AJ1NA Air Conditioner, 3.5 ton, R-454B Refrigerant, 1-Stage, 9 EER2
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 94008
MPN: RA13NY42AJ1NA
CPN:
| BTU Cooling Rating | : | 42000 Btu/hr |
| Compressor Type | : | Scroll |
| Depth | : | 33-3/4 in |
| EER2 | : | 9 |
| Height | : | 27 in |
| Liquid Line Size | : | 3/8 in |
| Minimum Circuit Ampacity (MCA) | : | 23 A |
| Model Number | : | RA13NY |
| Number of Rows | : | 2 |
| Number of Stages | : | 1 |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 28.5 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor® Line Classic® Series iM |
| Product Weight | : | 217 lb |
| Refrigerant Type | : | R-454B |
| SEER2 | : | 13.4 |
| Shipping Weight | : | 224 lb |
| Sound Level | : | 68 dB |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 3.5 ton |
| Voltage Rating | : | 208-230 V |
| Width | : | 33-3/4 in |
Rheem® Endeavor® Air Conditioner, R-454B Refrigerant, 1 Stages, 42000 Btu/hr Cooling, 208-230 V, 13.4 SEER2, 9 EER2, 1 ph Phase, 68 dB Sound Level, Scroll Compressor, 3/8 in Liquid Line, 7/8 in Suction Line, 27 in Height, 33-3/4 in Width, 33-3/4 in Depth, 23 A Minimum Circuit Ampacity, 2 Rows
7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliabilityPlusOne® Expanded Valve Space: 3 in. - 4 in. - 5 in. service valve space - provides a minimum working area of 27-square inches for easier access PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels - makes repairs easier and faster Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
