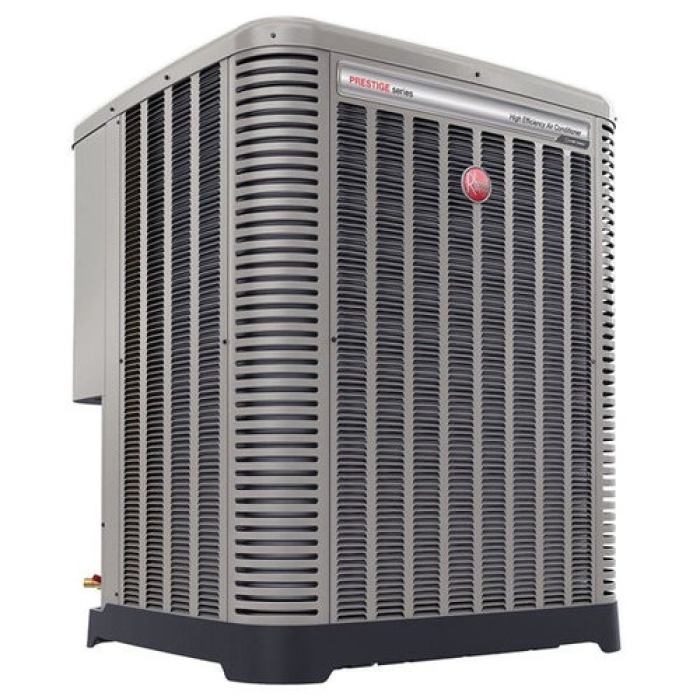

Rheem® Endeavor® Line Prestige® Series iM RA19AY60AJVCA Air Conditioner, 5 ton, R-454B Refrigerant, 208-230 V, 12 EER2
Rheem® Endeavor® Line Prestige® Series iM RA19AY60AJVCA Air Conditioner, 5 ton, R-454B Refrigerant, 208-230 V, 12 EER2
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 95318
MPN: RA19AY60AJVCA
CPN:
| BTU Cooling Rating | : | 60000 Btu/hr |
| Compressor Type | : | Variable Speed Scroll |
| Depth | : | 36-2/15 in |
| EER2 | : | 12 |
| Energy Star Certified | : | Yes |
| Height | : | 51-1/6 in |
| Liquid Line Size | : | 3/8 in |
| Minimum Circuit Ampacity (MCA) | : | 30 A |
| Model Number | : | RA19AY |
| Number of Rows | : | 1 |
| Packaged Depth | : | 39.37 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor® Line Prestige® Series iM |
| Product Weight | : | 307 lb |
| Refrigerant Type | : | R-454B |
| SEER2 | : | 19 |
| Sound Level | : | 70 to 76 dB |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 208-230 V |
| Width | : | 36-2/15 in |
Rheem® Endeavor® Air Conditioner, R-454B Refrigerant, 60000 Btu/hr Cooling, 208-230 V, 19 SEER2, 12 EER2, 1 ph Phase, 70 to 76 dB Sound Level, Variable Speed Scroll Compressor, 3/8 in Liquid Line, 7/8 in Suction Line, 51-1/6 in Height, 36-2/15 in Width, 36-2/15 in Depth, 30 A Minimum Circuit Ampacity, 1 Rows
EcoNet® Enabled: Automatic system configuration and optimizationPlusOne® Diagnostics & Bluetooth1 Connectivity: With the Rheem Contractor & EcoNet® Apps, built-in technology makes advanced set-up, monitoring, troubleshooting, and repairing the product easier than ever before Brushless DC Condenser Motors (BLDC): Enhances reliability and allows for easier serviceability Swept Wing Fan Technology: Features quieter operation and improved unit acoustics PlusOne® Expanded Valve Space: 3 in. - 4 in. - 5 in. service valve space-provides a minimum working area of 27-square inches for easier access PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels - makes repairs easier and faster Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of educing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
