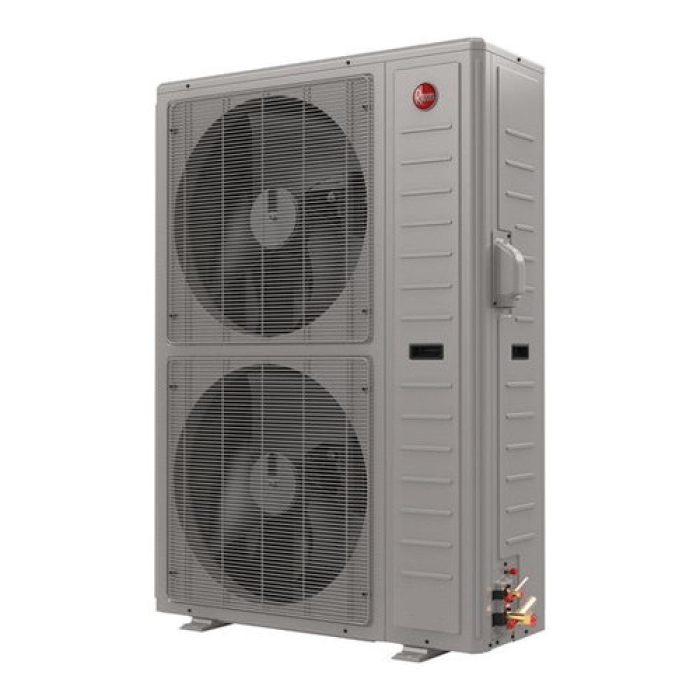

Rheem® Endeavor® Line Prestige® Series RD18AY48AJVCA Side Discharge Universal Heat Pump, 4 ton, R-454B Refrigerant
Rheem® Endeavor® Line Prestige® Series RD18AY48AJVCA Side Discharge Universal Heat Pump, 4 ton, R-454B Refrigerant

Rheem® Endeavor® Line Prestige® Series RD18AY48AJVCA Side Discharge Universal Heat Pump, 4 ton, R-454B Refrigerant

Rheem® Endeavor® Line Prestige® Series RD18AY48AJVCA Side Discharge Universal Heat Pump, 4 ton, R-454B Refrigerant

Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 95521
MPN: RD18AY48AJVCA
CPN:
BTU Cooling Rating      :      48000 Btu/hr
Compressor Type      :      Inverter Driven, Variable Speed Twin Rotary
Depth      :      19-4/5 in
EER2      :      13
Energy Star Certified      :      Yes
HSPF2      :      10
Height      :      58 in
Liquid Line Size      :      3/8 in
Minimum Circuit Ampacity (MCA)      :      38 A
Model Number      :      RD18AY
Number of Rows      :      3
Packaged Depth      :      22.05 in
Packaged Height      :      65.16 in
Packaged Width      :      48.43 in
Phase      :      1 ph
Product Family      :      Endeavor® Line Prestige® Series
Product Weight      :      296 lb
Refrigerant Type      :      R-454B
SEER2      :      18
Shipping Weight      :      347 lb
Sound Level      :      61 dB
Suction Line Size      :      7/8 in
Tonnage      :      4 ton
Voltage Rating      :      208-230 V
Width      :      40-2/5 in

Rheem® Endeavor® Side Discharge Universal Heat Pump, R-454B Refrigerant, 48000 Btu/hr Cooling, 18 SEER2, 13 EER2, 10 HSPF2, 61 dB Sound Level, 208-230 V, 1 ph Phase, Inverter Driven, Variable Speed Twin Rotary Compressor, 3/8 in Liquid Line, 7/8 in Suction Line, 58 in Height, 40-2/5 in Width

Flexible and Universal Install Compatibility - Works with nearly any R-454B HVAC System-including Rheem EcoNet® Enabled systems and non-communicating systems
  • Install with any indoor system component via a Rheem algorithm
  • Install as a Universal Replacement with minimal alterations (R-454B coil only-with TXV)
  • Space Saver Solution: The RD18AY-with footprint options as low as 36.6" tall and 19.8" wide-is ideal for when installation locations are constrained; but is also perfect for any system or replacement option where an efficient, streamlined look is desired
  • Quiet Operation as low as 50dBA1: Offers sound dampening features such as a sound blanket, refrigerant tubing design, fan blade approach and innovative compressor and drive technologies-ensure that as efficiency goes up, sound levels stay low
  • EcoNet® Enabled: Automatic system configuration and optimization
  • PlusOne® Diagnostics & Bluetooth®3, 4 Connectivity: With the Rheem Contractor & EcoNet® Apps, built-in technology makes advanced set-up, monitoring, troubleshooting, and repairing the product easier than ever before
  • PlusOne® Variable Speed Twin Rotary Compressor & Inverter Drive Features variable speed operation from 45 to 100% capacity with the EcoNet® Smart Thermostat or with legacy and other thermostats when the utility 1 and& 2 jumpers are installed or using the Rheem algorithm
  • Provides precise temperature control, advanced humidity control and greater efficiency
  • Brushless DC Condenser Motors (BLDC): Enhances reliability and allows for easier serviceability
  • Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
  • 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
  • Traditional Refrigerant Piping: Allows for use of existing refrigerant line sets for further ease of replacement installation flexibility
  • Qualifies for Federal Incentives (conditions apply) - Federal Tax Credit compliant system combinations across all product tonnages
  • PlusOne® Refrigerant Detection System™6: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with the any 24V thermostat application and system protection by automatically pausing outdoor unit operation- if excess refrigerant is detected
  • Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%7 lower GWP than previous-generation refrigerants- with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Rheem_RD18AY24AJVCA_Specification_Sheet.pdf
