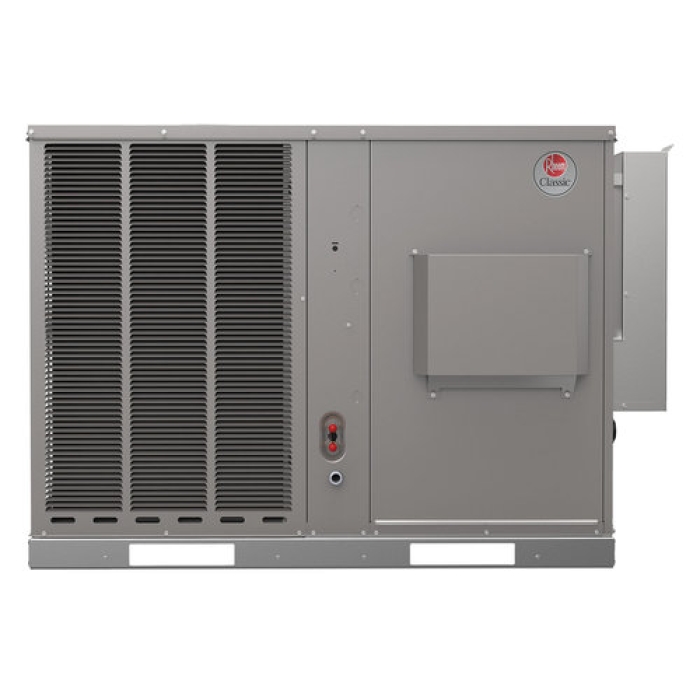

Rheem® Endeavor® Line Classic® Series RGEAYB024AJT061NAAJA Residential Packaged Gas and Electric Unit, 2 ton, 81 % AFUE
Rheem® Endeavor® Line Classic® Series RGEAYB024AJT061NAAJA Residential Packaged Gas and Electric Unit, 2 ton, 81 % AFUE
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 94744
MPN: RGEAYB024AJT061NAAJA
CPN:
| AFUE | : | 81 % |
| BTU Cooling Rating | : | 23700 Btu/hr |
| BTU Heating Input Rating | : | 60000 Btu/hr |
| BTU Heating Ouput Rating | : | 48000 Btu/hr |
| Compressor Type | : | Scroll |
| Depth | : | 50-13/16 in |
| EER2 | : | 10.6 |
| Height | : | 35-15/16 in |
| Minimum Circuit Ampacity (MCA) | : | 19 A |
| Model Number | : | RGEAYB |
| Number of Rows | : | 1 |
| Number of Stages Cooling | : | Single Stage |
| Number of Stages Heating | : | Single Stage |
| Phase | : | 1 ph |
| Product Family | : | Endeavor® Line Classic® Series |
| Refrigerant Type | : | R-454B |
| SEER2 | : | 13.4 |
| Shipping Weight | : | 397 lb |
| Sound Level | : | 77 dB |
| Suction Line Size | : | 1/2 in |
| Tonnage | : | 2 ton |
| True Product Weight | : | 389 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 47-1/2 in |
Rheem® Endeavor® Residential Packaged Gas and Electric Unit, R-454B Refrigerant, 23700 Btu/hr Cooling, 60000 Btu/hr Heating Input, 81 % AFUE, 48000 Btu/hr Heating Output, 13.4 SEER2, 1 ph Phase, 208/230 V, 10.6 EER2, Single Stage Cooling Stages, Single Stage Heating Stages, 1/2 in Suction Line, 35-15/16 in Height, 47-1/2 in Width
PlusOne® Ignition System: Direct Spark Ignition (DSI) for reliability and longevityScroll Compressors on all models: Provides maximum efficiency and quiet operation MicroChannel Evaporator & Condenser Coil: Delivers superior performance with a robust surface, a decreased refrigerant requirement and is lighter than conventional copper tube/aluminum fin coils.All-aluminum construction offers superior protection against formicary corrosion and aluminum tube rubbing damage. Design allows for easier and faster cleaning Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions High Pressure Control: Standard on all models for refrigerant component protection and reliability Easily Accessible Control Box, Furnace Compartment and Slide-Out Blower Section Allows for faster installability and serviceability Supplemental Electric Heating Option Available: Field-Installed, electrical heat strips, up to 15 kW with simplified single-point wiring, are available for periods of extreme weather conditions Tested. Trusted. Tough. 100% Factory Run Tested PlusOne® Refrigerant Detection System™1 Integrated, patented design providing system protection and homeowner peace-of-mind with low GWP refrigerant monitoring Scroll Compressors on all models:Provides maximum efficiency and quiet operation MicroChannel Evaporator and Condenser Coil: Delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. All aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface. Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions. High Pressure Control: Standard on all models for refrigerant component protection and reliability. Filter Drier: Standard on all models. 100% Factory Run Tested. PlusOne® Ignition System: Proven Direct Spark Ignition System (DSI) for reliability and longevity. PlusOne® Refrigerant Detection System™1: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected. Rugged Base Rail: For improved installation and handling. Easily Accessible Control Box, Furnace Compartment and Blower Section with Slide-Out Blower. Slide and Down Discharge Options Available: All models are shipped ready for horizontal applications.
