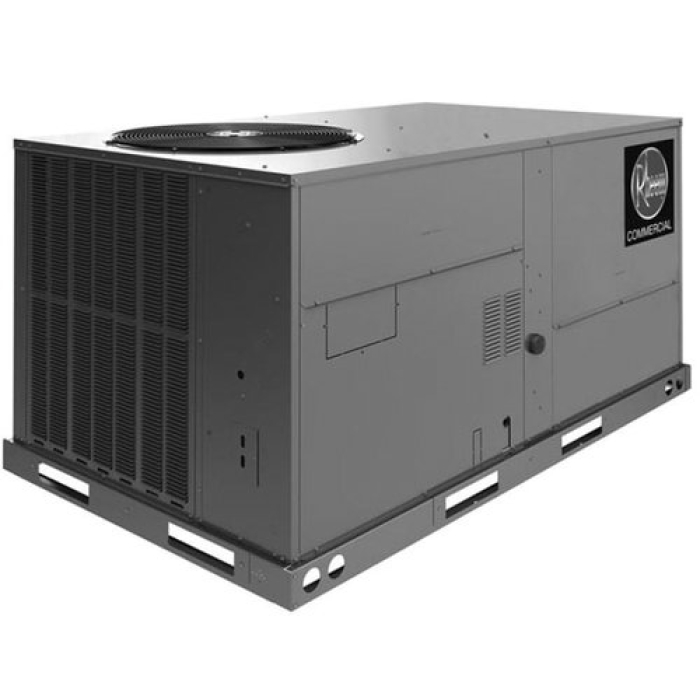

Rheem® Renaissance™ Line Classic® Series RGECZR036ADT07BACCA0 Packaged Gas and Electric Unit, 3 ton, R-410A Refrigerant
Rheem® Renaissance™ Line Classic® Series RGECZR036ADT07BACCA0 Packaged Gas and Electric Unit, 3 ton, R-410A Refrigerant
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 89836
MPN: RGECZR036ADT07BACCA0
CPN:
| AFUE | : | 81 % |
| BTU Cooling Rating | : | 36000 Btu/hr |
| BTU Heating Input Rating | : | 100000 Btu/hr |
| BTU Heating Output Rating | : | 42525 Btu/hr |
| Compressor Type | : | Scroll |
| Depth | : | 46-3/4 in |
| EER | : | 11.2 |
| Height | : | 41-3/8 in |
| Minimum Circuit Ampacity (MCA) | : | 11 A |
| Model Number | : | RGECZR |
| Number of Rows | : | 1 |
| Number of Stages Cooling | : | Single Stage |
| Phase | : | 3 ph |
| Product Family | : | Renaissance™ Line Classic® Series |
| Product Weight | : | 557 lb |
| Refrigerant Type | : | R-410A |
| SEER | : | 14 |
| Shipping Weight | : | 595 lb |
| Sound Level | : | 78.6 dB |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 460 V |
| Width | : | 79-1/4 in |
Rheem® Renaissance™ Packaged Gas and Electric Unit, Tonnage: 3 ton, R-410A Refrigerant, 36000 Btu/hr Cooling, 100000 Btu/hr Heating Input, 42525 Btu/hr BTU Heating Output, 81 % AFUE, 460 V, 3 ph Phase, Single Stage Cooling Stages, 14 SEER, 11.2 EER, 41-3/8 in Height, 79-1/4 in Width, 46-3/4 in Depth, 78.6 dB Sound Level, 11 A Minimum Circuit Ampacity, Scroll Compressor, 1 Rows, Product Family: Line Classic® Series
Factory charged with R-410A HFC refrigerantWired and run tested Scroll compressors with internal line break overload and high pressure protection Convertible airflow - vertical down flow or horizontal side flow Forkable base rails for easy handling and lifting Cooling operation up to 125 deg F ambient Two-stage gas heat input with direct spark ignition system, solid state furnace controls, and optimized induced draft combustion MicroChannel evaporator and condenser coil PlusOne® ServiceSmart package includes - Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, Qwik-Clean Drain Pan™ Over-flow condensate sensor PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance One-piece top cover and base pan with drawn supply and return opening Two-piece control door 1/4 turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid-core liquid line filter drier High pressure and low pressure/loss of charge protection with built-in Smart Logic Insulation encapsulated throughout entire unit
