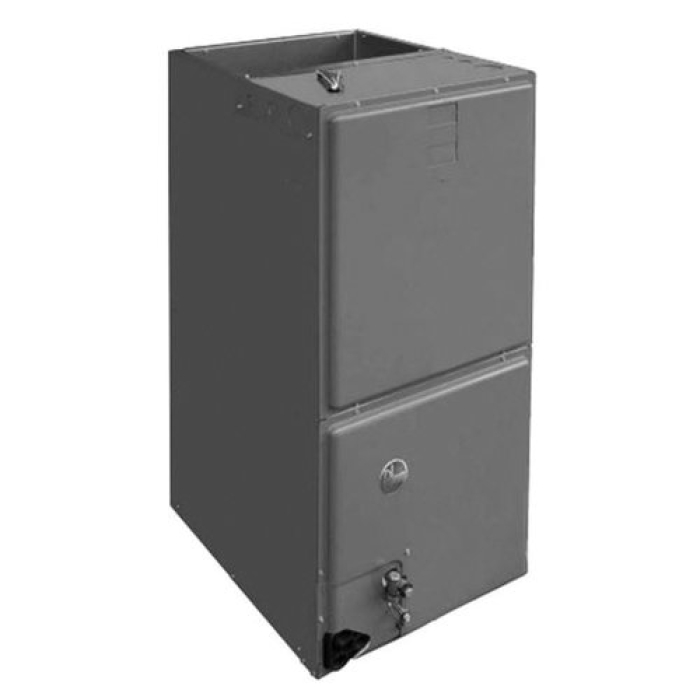

Rheem® Endeavor® Line Classic® Series RH2TY4821STANNJ Multi-Purpose Air Handler, 4 ton, R-454B Refrigerant, 208-240 V
Rheem® Endeavor® Line Classic® Series RH2TY4821STANNJ Multi-Purpose Air Handler, 4 ton, R-454B Refrigerant, 208-240 V
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 95054
MPN: RH2TY4821STANNJ
CPN:
| BTU Cooling Rating | : | 48000 Btu/hr |
| CFM Airflow | : | 1600 cfm |
| Depth | : | 21-11/16 in |
| Height | : | 50-1/2 in |
| Model Number | : | RH2TY |
| Motor Type | : | Constant Torque |
| Number of Speeds | : | 4 |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Product Family | : | Endeavor® Line Classic® Series |
| Product Weight | : | 128 lb |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | Non-Communicating |
| Shipping Weight | : | 144 lb |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 208-240 V |
| Width | : | 21 in |
Rheem® Endeavor® Multi-Purpose Air Handler, R-454B Refrigerant, 208-240 V, 1 ph Phase, 2 Stages, 48000 Btu/hr Cooling, 1600 cfm, Non-Communicating Refrigeration Control Type, 21 in Width, 50-1/2 in Height, 21-11/16 in Depth, Constant Torque Motor, 4 Speed
Quiet operation - provided by a cabinet construction with 1 in of foil faced insulation for quieter sound characteristicsAluminum indoor coil design - constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion-resistant Versatile 4-way convertible compact design - allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces Rugged steel, compact cabinet construction - designed for added strength and versatility Field installed auxiliary heater kits - provide exact heat for indoor comfort and include circuit breakers which meet ul and cul requirements for service disconnect Less than 2% cabinet air leakage at 1 in H2O - when tested in accordance with ASHRAE Standard 193 Designing for sustainability with low GWP - for 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78% lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24 V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
