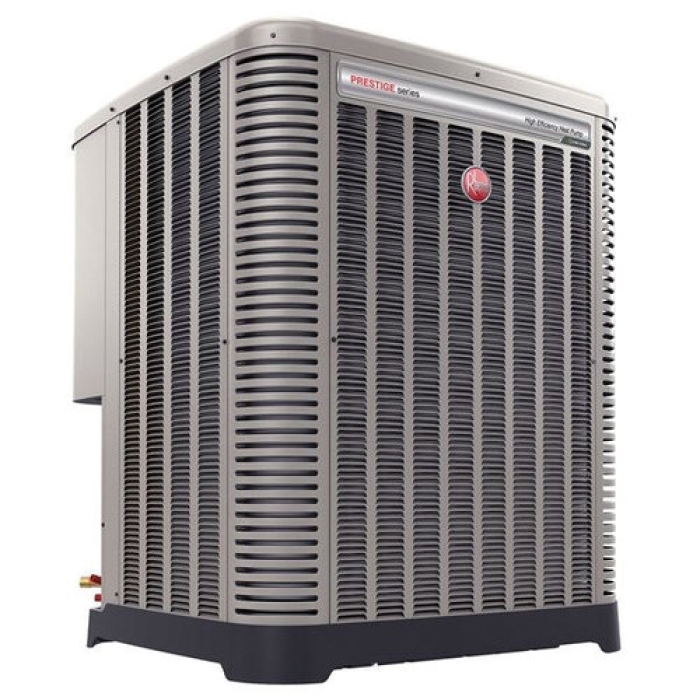

Rheem® Endeavor® Line Prestige® Series iM RP19AY48AJVCA Heat Pump, 4 ton, R-454B Refrigerant, 48000 Btu/hr Cooling BTU
Rheem® Endeavor® Line Prestige® Series iM RP19AY48AJVCA Heat Pump, 4 ton, R-454B Refrigerant, 48000 Btu/hr Cooling BTU
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 95688
MPN: RP19AY48AJVCA
CPN:
| BTU Cooling Rating | : | 48000 Btu/hr |
| Compressor Type | : | Inverter Driven, Variable Speed Scroll |
| Depth | : | 36-2/15 in |
| EER2 | : | 12 |
| Energy Star Certified | : | Yes |
| HSPF2 | : | 8.5 |
| Height | : | 51-1/6 in |
| Liquid Line Size | : | 3/8 in |
| Minimum Circuit Ampacity (MCA) | : | 24 A |
| Model Number | : | RP19AY |
| Number of Rows | : | 1 |
| Packaged Depth | : | 39.37 in |
| Packaged Height | : | 53.56 in |
| Packaged Width | : | 39.64 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor® Line Prestige® Series iM |
| Product Weight | : | 298 lb |
| Refrigerant Type | : | R-454B |
| SEER2 | : | 19 |
| Shipping Weight | : | 306 lb |
| Sound Level | : | 59 to 73 dB |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 208-230 V |
| Width | : | 36-2/15 in |
Rheem® Endeavor® Heat Pump, R-454B Refrigerant, 48000 Btu/hr Cooling, 19 SEER2, 12 EER2, 8.5 HSPF2, 59 to 73 dB Sound Level, 208-230 V, 1 ph Phase, Inverter Driven, Variable Speed Scroll Compressor, 3/8 in Liquid Line, 7/8 in Suction Line, 51-1/6 in Height, 36-2/15 in Width
EcoNet® Enabled: Automatic system configuration and optimizationPlusOne® Diagnostics & Bluetooth®1 Connectivity: With the Rheem Contractor & EcoNet® Apps, built-in technology makes advanced set-up, monitoring, troubleshooting, and repairing the product easier than ever before Variable Speed Scroll Compressor & Inverter Drive Features variable speed operation from 40 to 100% capacity with the EcoNet® Smart Thermostat Offers overdrive capability up to 115% to maintain performance in extreme conditions Provides precise temperature control, advanced humidity control and greater efficiency Brushless DC Condenser Motors (BLDC): Enhances reliability and allows for easier serviceability Swept Wing Fan Technology: Features quieter operation and improved unit acoustics Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of educing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess efrigerant is detected
