Rheem® RXBH Series RXBH-1724A05J Heater Kit, 208-230 V, 5 kW, 1 ph, For Use With: Rheem® and RUUD® Air Handlers
Rheem® RXBH Series RXBH-1724A05J Heater Kit, 208-230 V, 5 kW, 1 ph, For Use With: Rheem® and RUUD® Air Handlers
Rheem® RXBH Series RXBH-1724A05J Heater Kit, 208-230 V, 5 kW, 1 ph, For Use With: Rheem® and RUUD® Air Handlers
Rheem® RXBH Series RXBH-1724A05J Heater Kit, 208-230 V, 5 kW, 1 ph, For Use With: Rheem® and RUUD® Air Handlers
Rheem® RXBH Series RXBH-1724A05J Heater Kit, 208-230 V, 5 kW, 1 ph, For Use With: Rheem® and RUUD® Air Handlers

Rheem® RXBH Series RXBH-1724A05J Heater Kit, 208-230 V, 5 kW, 1 ph, For Use With: Rheem® and RUUD® Air Handlers

Rheem® RXBH Series RXBH-1724A05J Heater Kit, 208-230 V, 5 kW, 1 ph, For Use With: Rheem® and RUUD® Air Handlers

Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 54982
MPN: RXBH-1724A05J
CPN:
For Use With      :      Rheem® and RUUD® Air Handlers
Packaged Depth      :      11.8 in
Packaged Height      :      6 in
Packaged Width      :      23.15 in
Phase      :      1 ph
Product Family      :      RXBH Series
Product Type      :      Heater Kit
Shipping Weight      :      5.01 lb
Voltage Rating      :      208-230 V
Watts      :      5 kW

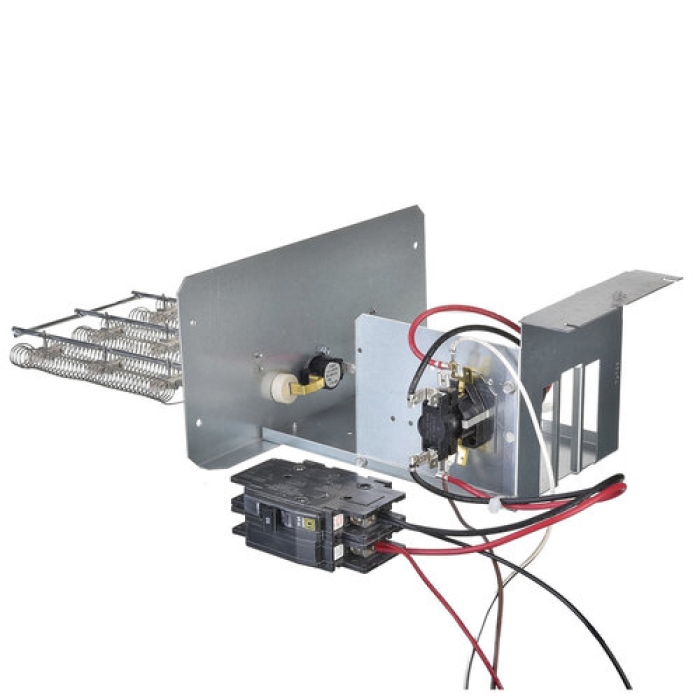

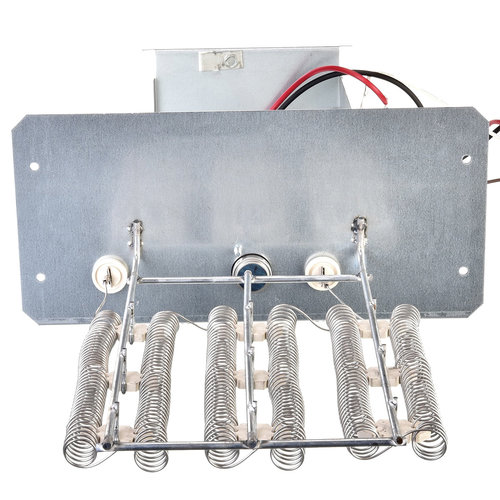

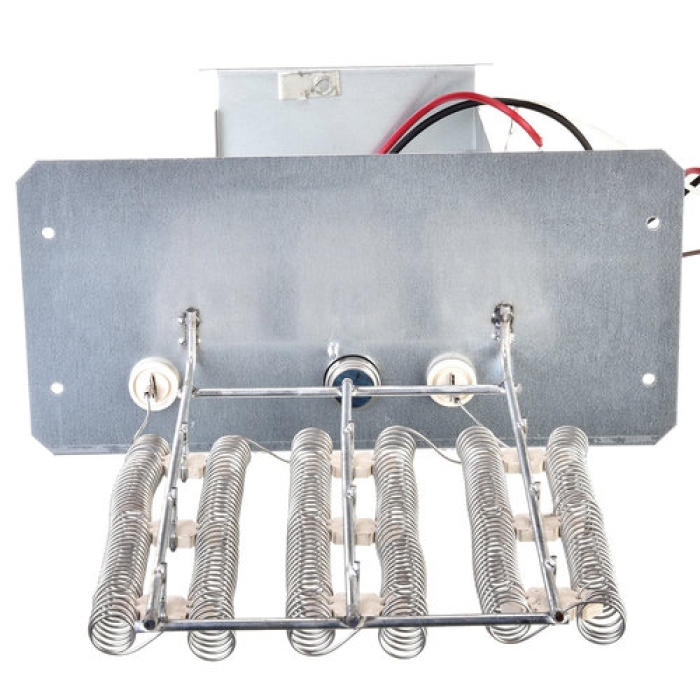

The Rheem RXBH series Electric Heater Kits are made for Rheem and Ruud air handlers. These kits have built-in over-current protection and nickel chromium heat elements for long-lasting durability.

Rheem® Heater Kit, 208-230 V, 5 kW, 1 ph Phase, For Use With: Rheem® and RUUD® Air Handlers, Product Family: RXBH Series

Sequencers for better temperature control
  • Multiple branch circuit capability
  • Completely assembled and tested
  • Control circuit arranged to readily permit staging
  • Factory installed disconnect available on specific models (see electrical data)
  • Fuse link secondary high-temperature limit control
  • Plug-in wiring harness for ease on installation into air handler
  • Rust resistant nickel chromium heat elements
  • ETL listed
