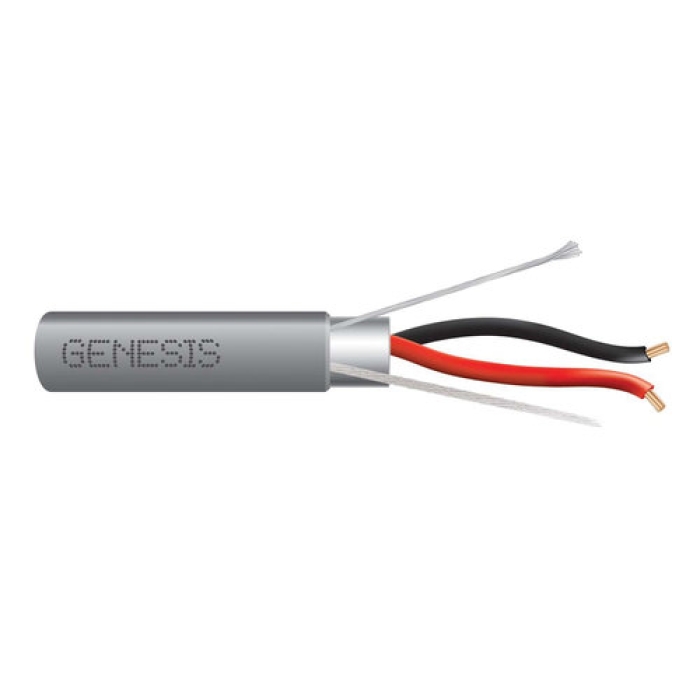

Southwire® Genersis® 22145009 Riser-Rated Shielded Multi-Conductor Cable, 18 AWG Wire, 2-Conductor, 500 ft L, 300 V
Southwire® Genersis® 22145009 Riser-Rated Shielded Multi-Conductor Cable, 18 AWG Wire, 2-Conductor, 500 ft L, 300 V
Southwire® Genersis® 22145009 Riser-Rated Shielded Multi-Conductor Cable, 18 AWG Wire, 2-Conductor, 500 ft L, 300 V
Southwire® Genersis® 22145009 Riser-Rated Shielded Multi-Conductor Cable, 18 AWG Wire, 2-Conductor, 500 ft L, 300 V

Southwire® Genersis® 22145009 Riser-Rated Shielded Multi-Conductor Cable, 18 AWG Wire, 2-Conductor, 500 ft L, 300 V

Southwire® Genersis® 22145009 Riser-Rated Shielded Multi-Conductor Cable, 18 AWG Wire, 2-Conductor, 500 ft L, 300 V

Manufacturer: Southwire Company, LLC
Brand: Southwire®
Part #: 58889
MPN: 22145009
CPN:
Conductor Material      :      Bare Copper
ETL Listed      :      Yes
Function Type      :      Multi-Conductor Cable
Jacket Color      :      Gray
Jacket Material      :      PVC
Length      :      500 ft
Number of Conductors      :      2
Operating Temperature Rating      :      -20 to 75 deg C

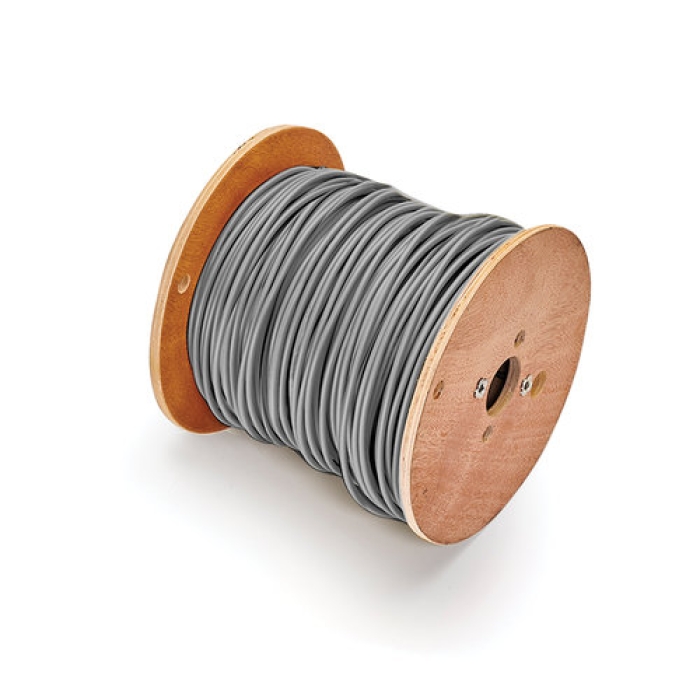

Package Type      :      Spool
Product Family      :      Genersis®
Product Type      :      Multi-Conductor Cable
Product Weight      :      18 lb/1000 ft
Shielded      :      Shielded
Solid/Stranded      :      Stranded
UL Listed      :      Yes
UV Resistant      :      Yes
Voltage Rating      :      300 V
Wire Size      :      18 AWG

Southwire® Genersis® Riser-Rated Shielded Multi-Conductor Cable, 18 AWG Wire, 2 Conductors, 500 ft Length, Shielded Shielded, 300 V, Stranded Solid/Stranded, Bare Copper Conductor, PVC Jacket, UV Resistant: Yes, Gray Jacket, -20 to 75 deg C Operating Temperature, UL Listed: Yes, ETL Listed: Yes

Bare copper conductors for excellent conductivity and low voltage drop
  • Polypropylene insulation
  • Foil shield over all conductors
  • Durable rip cord for efficient jacket stripping and removal
  • Countdown® length markings for easy tracking of usage and remaining cable
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Southwire_22145009_Catalog.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Southwire_22145009_Specification_Sheet.pdf
