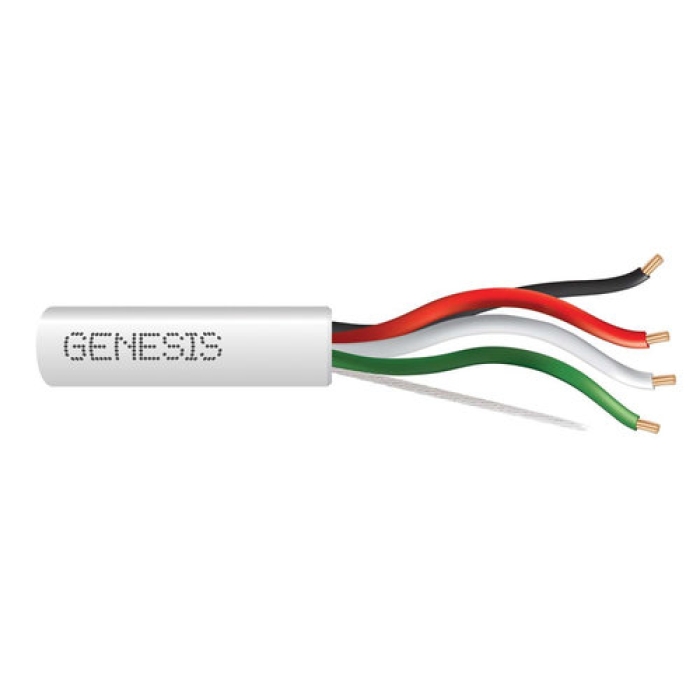

Southwire® Genersis® 31045501 Plenum-Rated Multi-Conductor Cable, 22 AWG Wire, 4-Conductor, 500 ft L, 300 V, Stranded
Southwire® Genersis® 31045501 Plenum-Rated Multi-Conductor Cable, 22 AWG Wire, 4-Conductor, 500 ft L, 300 V, Stranded
Manufacturer: Southwire Company, LLC
Brand: Southwire®
Part #: 94926
MPN: 31045501
CPN:
| Application | : | Wired LG Thermostats |
| Conductor Material | : | Bare Copper |
| ETL Listed | : | Yes |
| Function Type | : | Multi-Conductor Cable |
| Jacket Color | : | White |
| Jacket Material | : | PVC |
| Length | : | 500 ft |
| Number of Conductors | : | 4 |
| Operating Temperature Rating | : | -20 to 75 deg C |
| Package Type | : | Spool |
| Product Family | : | Genersis® |
| Product Type | : | Multi-Conductor Cable |
| Product Weight | : | 15 lb/1000 ft |
| Shielded | : | Unshielded |
| Solid/Stranded | : | Stranded |
| UL Listed | : | Yes |
| Voltage Rating | : | 300 V |
| Wire Size | : | 22 AWG |
Southwire® Genersis® Plenum-Rated Multi-Conductor Cable, 22 AWG Wire, 4 Conductors, 500 ft Length, Unshielded Shielded, 300 V, Stranded Solid/Stranded, Bare Copper Conductor, PVC Jacket, White Jacket, Application: Wired LG Thermostats, -20 to 75 deg C Operating Temperature, UL Listed: Yes, ETL Listed: Yes
Bare copper conductors for excellent conductivity and low voltage dropLow-smoke PVC insulation Plenum PVC jacket Durable rip cord for efficient jacket stripping and removal Countdown® length markings for easy tracking of usage and remaining cable. Speed Bag variations use sequential length markings
