Southwire® 18ULT Series 47160307 General Purpose-Rated Thermostat Cable, 18 AWG Wire, 8-Conductor, 250 ft L, Solid
Southwire® 18ULT Series 47160307 General Purpose-Rated Thermostat Cable, 18 AWG Wire, 8-Conductor, 250 ft L, Solid
| Conductor Color | : | Black/Blue/Brown/Green/Orange/Red/White/Yellow |
| Conductor Material | : | Copper |
| ETL Listed | : | Yes |
| Function Type | : | Thermostat Cable |
| Jacket Color | : | Brown |
| Jacket Material | : | PVC |
| Length | : | 250 ft |
| Number of Conductors | : | 8 |
| Operating Temperature Rating | : | -20 to 75 deg C |
| Package Type | : | Spool |
| Product Family | : | 18ULT Series |
| Product Weight | : | 49 lb/1000 ft |
| Shielded | : | Unshielded |
| Solid/Stranded | : | Solid |
| UL Listed | : | Yes |
| Voltage Rating | : | 150 V |
| Wire Size | : | 18 AWG |

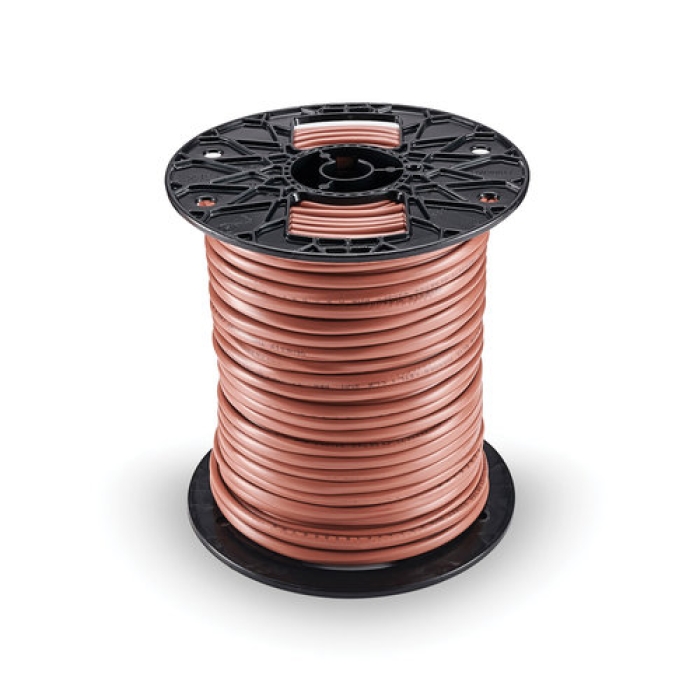

Genesis' new Thermostat Cable Reels are made with flexible material that maintains its shape for easy, efficient pulls - from one job to the next. Its ergonomic features allow for easier transportation and protection from bends, breaks and rust. Additionally, the reel is made from recycled materials for a more environmentally friendly and cost-effective option.
Southwire® General Purpose-Rated Thermostat Cable, 18 AWG Wire, 8 Conductors, 250 ft Length, Solid/Stranded, PVC Jacket, UnShielded, Copper Conductor, 150 V, Brown Jacket, Black/Blue/Brown/Green/Orange/Red/White/Yellow Conductor, -20 to 75 deg C Operating Temperature, UL Listed: Yes, ETL Listed: Yes, Product Family: 18ULT Series
