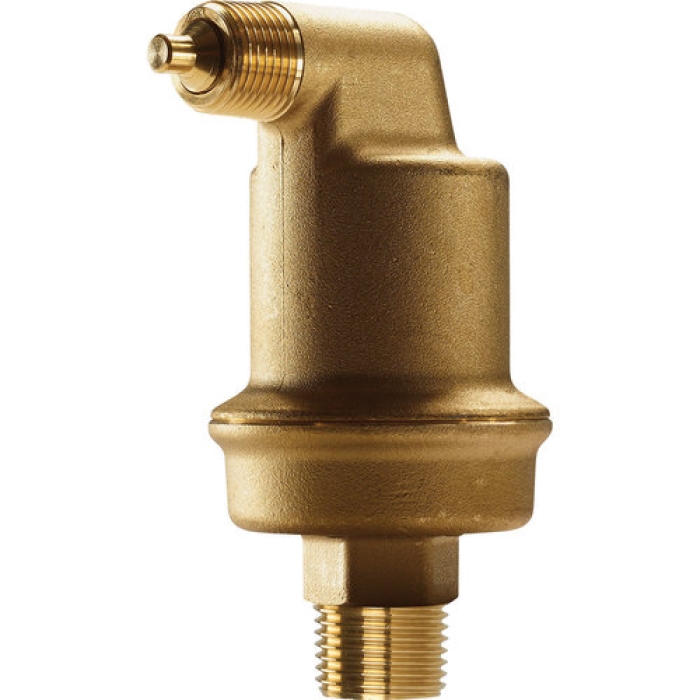

SPIROTHERM® Spirotop® VTP Series VTP 050 FP Automatic Air Vent, Air Vent, 1/2 x 3/4 in x FPT x MPT, Brass Body
SPIROTHERM® Spirotop® VTP Series VTP 050 FP Automatic Air Vent, Air Vent, 1/2 x 3/4 in x FPT x MPT, Brass Body
| Body Material | : | Brass |
| Connection Size | : | 1/2 x 3/4 in |
| Connection Type | : | FPT x MPT |
| Diameter | : | 2-5/8 in |
| Height | : | 4-3/4 in |
| Maximum Working Pressure | : | 150 psi |
| Operating Temperature Rating | : | 270 deg F |
| Product Family | : | Spirotop® VTP Series |
| Product Type | : | Air Vent |
The Spirotop has a unique "dry" vent design that helps prevent the system fluid from reaching the sping actuated Viton® seat and seal assembly, which is the cause of most conventional air vent failures. The all brass, stainless, and non ferrous construction is rated at 150 psig at 270 deg F as standard and carries a 20 year limited warranty. For special applications, both high temperature and high pressure options are available. When compared to vents of lesser construction and lower standard ratings, the Spirotop is extremely cost effective, in fact in most cases less expensive. It is becoming the standard replacement vent, especially with facilities departments responsible for multi-building campuses.
SPIROTHERM® Spirotop® Automatic Air Vent, 1/2 x 3/4 in Connection, FPT x MPT Connection, Brass Body, 150 psi Maximum Working Pressure, 2-5/8 in Diameter, 4-3/4 in Height, 270 deg F Operating Temperature, Product Family: VTP Series
