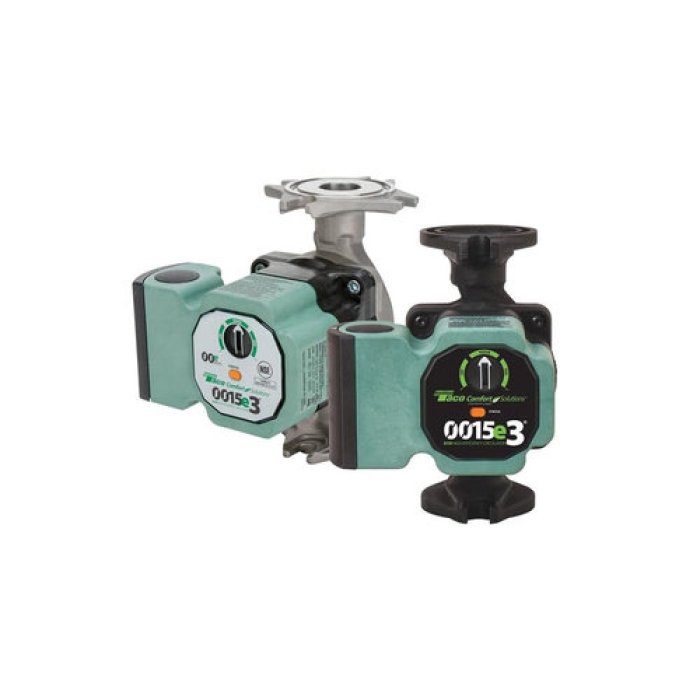

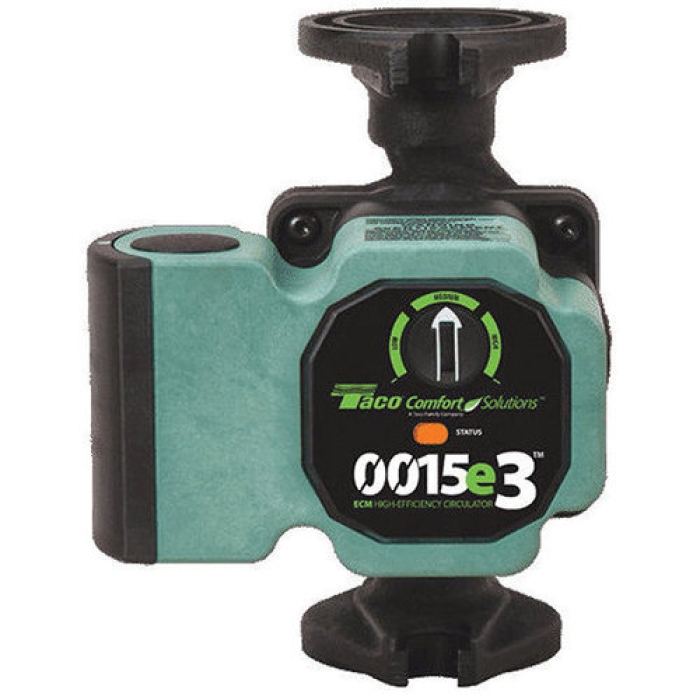

Taco Comfort Solutions® 00e Series 0015E-F4 High Efficiency Circulator Pump With 4-Way Flange, 1/20 hp Motor, 120 V
Taco Comfort Solutions® 00e Series 0015E-F4 High Efficiency Circulator Pump With 4-Way Flange, 1/20 hp Motor, 120 V
| Amperage Rating | : | 0.54 A |
| Body Material | : | Iron |
| Depth | : | 6-3/8 in |
| Flow Rate | : | 16 gpm |
| Height | : | 6 in |
| Impeller Material | : | Composite |
| Inlet Connection Size | : | 1 in |
| Inlet Connection Type | : | Flanged |
| Maximum Feet of Head | : | 18 ft |
| Maximum Working Pressure | : | 125 psi |
| Motor HP | : | 1/20 hp |
| Number of Speeds | : | 3 |
| Operating Temperature Rating | : | 36 to 230 deg F |
| Outlet Connection Size | : | 1 in |
| Outlet Connection Type | : | Flanged |
| Phase | : | 1 ph |
| Product Family | : | 00e Series |
| Voltage Rating | : | 120 V |
| Watts | : | 44 W |
| Width | : | 5 in |
The Taco 0015e3® ECM High-Efficiency Circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It's ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. With 3 easy settings, the 0015e3® ECM High-Efficiency Circulator delivers performance, reliability and ease of installation that made the 00® famous. Install it, forget it!®.
Taco Comfort Solutions® High Efficiency Circulator Pump, 1/20 hp Motor HP, 120 V, 1 ph Phase, 0.54 A, 1 in Inlet Connection, 1 in Outlet Connection, Flanged Inlet Connection, Flanged Outlet Connection, 16 gpm Flow Rate, Maximum Feet of Head: 18 ft, Iron Body, Composite Impeller, 3 Speed, 6 in Height, 5 in Width, 6-3/8 in Depth, 44 W, 125 psi Maximum Working Pressure, 36 to 230 deg F Operating Temperature, Product Family: 00e Series
