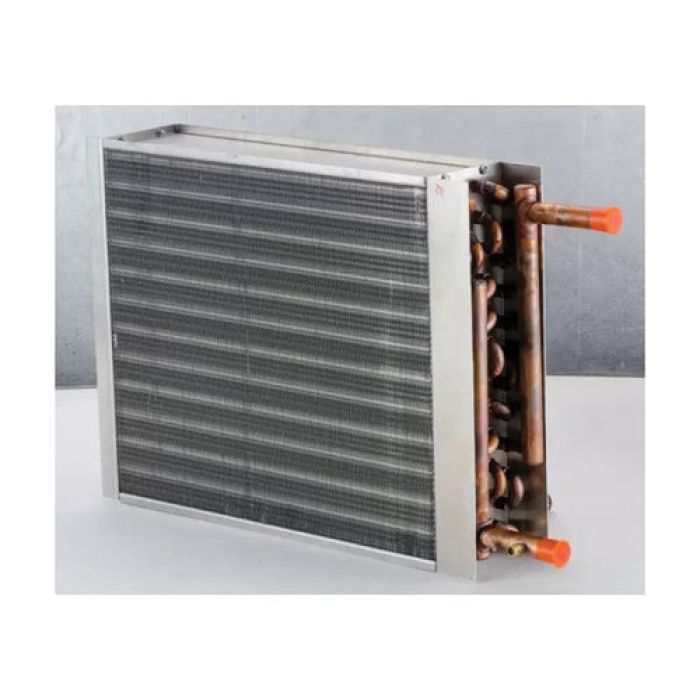

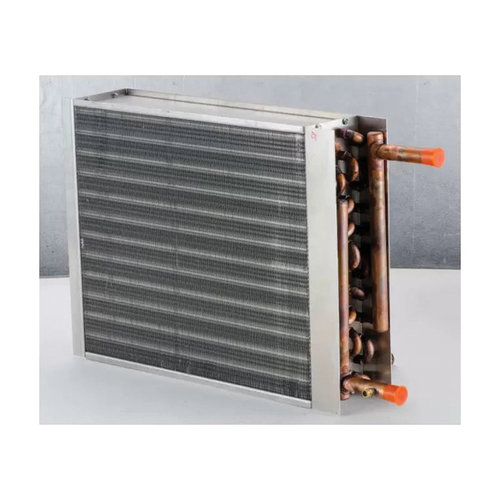

The Unico System® V Series HW-V3036 Hot Water Coil, 2.5 to 3 ton, 36000 Btu/hr BTU, Copper Coil, 15.86 in H
The Unico System® V Series HW-V3036 Hot Water Coil, 2.5 to 3 ton, 36000 Btu/hr BTU, Copper Coil, 15.86 in H

The Unico System® V Series HW-V3036 Hot Water Coil, 2.5 to 3 ton, 36000 Btu/hr BTU, Copper Coil, 15.86 in H

The Unico System® V Series HW-V3036 Hot Water Coil, 2.5 to 3 ton, 36000 Btu/hr BTU, Copper Coil, 15.86 in H

Manufacturer: The Unico System
Brand: The Unico System®
Part #: 66619
MPN: HW-V3036
CPN:
BTU Rating      :      36000 Btu/hr
Coil Material      :      Copper
Depth      :      4-1/2 in
For Use With      :      V3036 Vertical Air Handlers
Height      :      15.86 in
Packaged Depth      :      29 in
Packaged Height      :      19 in
Packaged Width      :      8 in
Product Family      :      V Series
Shipping Weight      :      48 lb
Tonnage      :      2.5 to 3 ton
Width      :      21.38 in

The Unico System® Hot Water Coil, 36000 Btu/hr, Copper Coil, 15.86 in Height, 21.38 in Width, 4-1/2 in Depth, For Use With: V3036 Vertical Air Handlers, Product Family: V Series

This is the hot water coil that slides into the V3036 vertical one piece fan coil unit
  • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/The_Unico_System_HW_2430_Catalog.pdf
