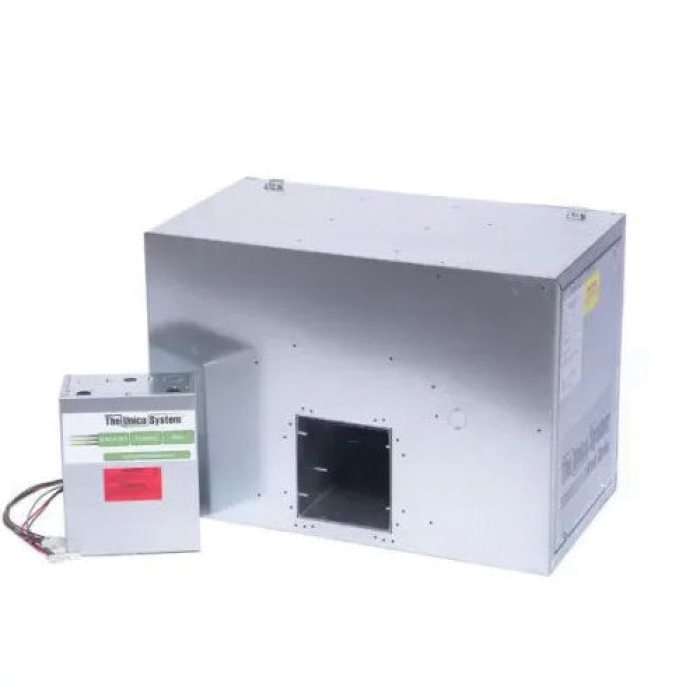

The Unico System® M2430BL1-EC2 Blower Module, Compatible Unit Tonnage: 2 to 2.5 ton, 208/230 V, 1 ph, 25 in L
The Unico System® M2430BL1-EC2 Blower Module, Compatible Unit Tonnage: 2 to 2.5 ton, 208/230 V, 1 ph, 25 in L
Manufacturer: The Unico System
Brand: The Unico System®
Part #: 52855
MPN: M2430BL1-EC2
CPN:
| Compatible Unit Tonnage | : | 2 to 2.5 ton |
| Depth | : | 13-3/4 in |
| Installation / Mounting Type | : | Horizontal, Vertical |
| Length | : | 25 in |
| Motor Type | : | ECM |
| Packaged Depth | : | 16 in |
| Packaged Height | : | 20 in |
| Packaged Width | : | 29 in |
| Phase | : | 1 ph |
| Product Type | : | Blower Module |
| Shipping Weight | : | 62 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 17-1/2 in |
The Unico System® Blower Module, 208/230 V, 1 ph Phase, Horizontal, Vertical Installation / Mounting, 25 in Length, 17-1/2 in Width, 13-3/4 in Depth
The variable speed EC Motor has the best efficiency and control, removes up to 4X more humidity, as well as providing the quietest optionBalanced blower wheels for smooth, vibration-free operation Direct drive motor for improved efficiency Shaft key connection Separate control box Control voltage transformer Screw terminal connections Heat pump AFS bypass Boiler relay to connect a hot water heating source Six (6) modes of operation Adjustable low airflow mode Efficient ventilation mode Point-to-point wiring Electric heater fan interlock Electric heater stage 3 lockout protection Chilled water relay for connecting to a chilled water source Fan cycling EAC, ERV, or HRV relay Potable water circulation Humidifier compatibility Soft-start and soft-stop for quiet operation
