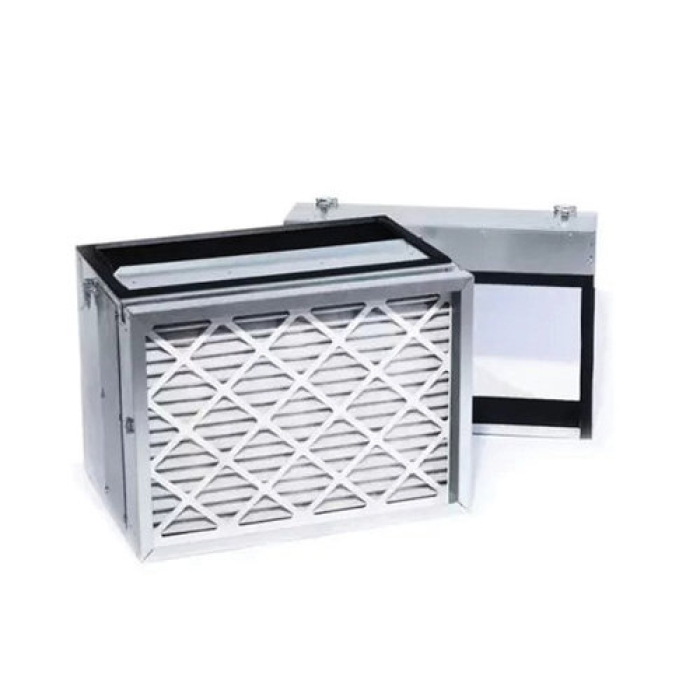

The Unico System® M2430V2 Vertical Plenum Module, 18-1/4 in H, 25 in W, 17-1/2 in D, 18 x 25 x 1 in Filter
The Unico System® M2430V2 Vertical Plenum Module, 18-1/4 in H, 25 in W, 17-1/2 in D, 18 x 25 x 1 in Filter

The Unico System® M2430V2 Vertical Plenum Module, 18-1/4 in H, 25 in W, 17-1/2 in D, 18 x 25 x 1 in Filter

The Unico System® M2430V2 Vertical Plenum Module, 18-1/4 in H, 25 in W, 17-1/2 in D, 18 x 25 x 1 in Filter

Manufacturer: The Unico System
Brand: The Unico System®
Part #: 81414
MPN: M2430V2
CPN:
Depth      :      17-1/2 in
Filter Size      :      18 x 25 x 1 in
Height      :      18-1/4 in
Packaged Depth      :      29 in
Packaged Height      :      20 in
Packaged Width      :      27 in
Product Type      :      Plenum Module
Shipping Weight      :      100 lb
Width      :      25 in

The Unico System® Vertical Plenum Module, 25 in Width, 17-1/2 in Depth, 18 x 25 x 1 in Filter

All Unico System modular air handlers are shipped from the factory configured for horizontal airflow
  • They may also be configured for vertical up-flow with the addition of a vertical conversion kit
  • Most applications designed for vertical configuration use a base plenum to elevate the unit for proper condensate drainage
  • The Unico System vertical plenum module eliminates the need for the installer to build a base
  • The vertical plenum module features a pleated filter, and room for an optional hot water coil
  • There are access panels on both sides so that the heating coil may be inserted from either side
  • The plenum module may be connected to a heating module return adapter, p/n: UPC-104, or operated as a free or "wild" return
  • If the air is filtered elsewhere, such as at a filter grille, then the central filter in the module may be removed
  • This is the 2 to 2.5 ton vertical plenum module with secondary drain pan
  • It is a base with a filter rack and filter that can house a hot water coil as an option
  • This is used for the M2430 model
  • The Return Air Module is designed for easy installation of multiple return air duct systems
  • Module comes without return air opening so that the installing contractor can cut whatever number of return ducts
  • The top and three sides of the module can be used for return air connections
  • A centrally located disposable air filter is accessible from either side of the cabinet
  • The Return Air Module is ideal for providing fresh air from outside, effectively turning it into a mixing box
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/The_Unico_System_M2430V2_Specification_Sheet.pdf
