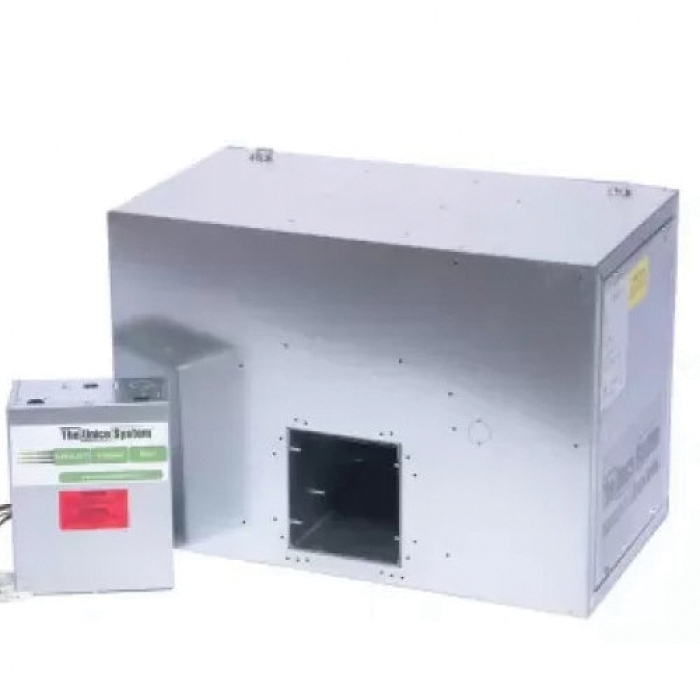

The Unico System® M3036BL2-EC2 Blower Module, Compatible Unit Tonnage: 2.5 to 3 ton, 120/208/230 V, 1 ph
The Unico System® M3036BL2-EC2 Blower Module, Compatible Unit Tonnage: 2.5 to 3 ton, 120/208/230 V, 1 ph
Manufacturer: The Unico System
Brand: The Unico System®
Part #: 95204
MPN: M3036BL2-EC2
CPN:
| Compatible Unit Tonnage | : | 2.5 to 3 ton |
| Installation / Mounting Type | : | Horizontal, Vertical |
| Motor Type | : | ECM |
| Packaged Depth | : | 16 in |
| Packaged Height | : | 20 in |
| Packaged Width | : | 34 in |
| Phase | : | 1 ph |
| Product Type | : | Blower Module |
| Shipping Weight | : | 73 lb |
| Voltage Rating | : | 120/208/230 V |
The Unico System modular blowers are designed for use with the Unico System small-duct high-velocity (SDHV) system. The blowers exceed the U.S. Department of Energy requirements for SDHV systems requiring a minimum external static pressure of 1.2 in-WC (0.3 kPa) at the rated airflow when installed with the compatible Unico cooling module. All cooling modules are available in Heat Pump, Chilled Water and refrigerant air conditioning configurations. Modular construction.
The Unico System® Blower Module, 120/208/230 V, 1 ph Phase, Horizontal, Vertical Installation / Mounting
Multiple configurationsEC motor (variable speed) High system efficiency Easy service motor/blower Constant airflow Programmable using Windows PC
