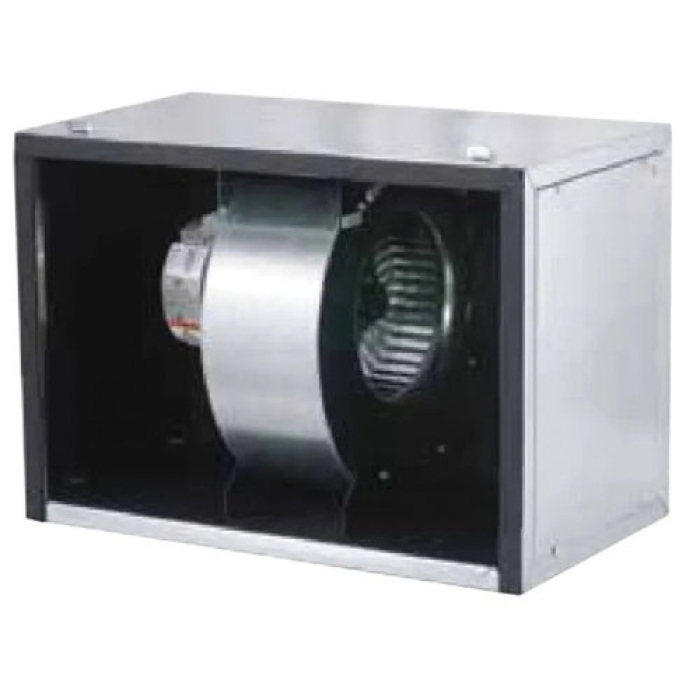

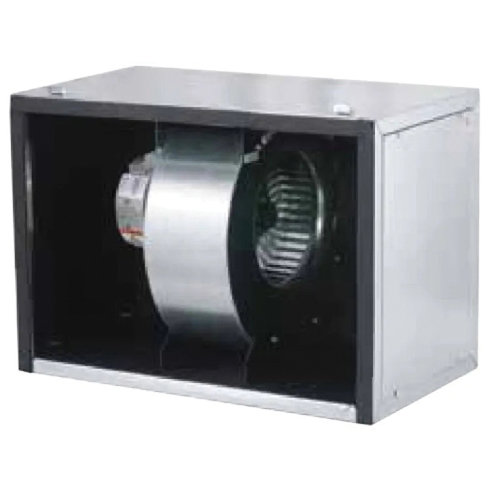

The Unico System® M3036BL2-ST2 Blower Module, Compatible Unit Tonnage: 2.5 to 3 ton, 208/230 V, 1 ph, 30 in L
The Unico System® M3036BL2-ST2 Blower Module, Compatible Unit Tonnage: 2.5 to 3 ton, 208/230 V, 1 ph, 30 in L
Manufacturer: The Unico System
Brand: The Unico System®
Part #: 58818
MPN: M3036BL2-ST2
CPN:
| Compatible Unit Tonnage | : | 2.5 to 3 ton |
| Depth | : | 13-3/4 in |
| Installation / Mounting Type | : | Horizontal, Vertical |
| Length | : | 30 in |
| Motor Type | : | PSC |
| Packaged Depth | : | 30 in |
| Packaged Height | : | 18 in |
| Packaged Width | : | 14 in |
| Phase | : | 1 ph |
| Product Type | : | Blower Module |
| Shipping Weight | : | 72 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 17-1/2 in |
The Unico System® Blower Module, 208/230 V, 1 ph Phase, Horizontal, Vertical Installation / Mounting, 30 in Length, 17-1/2 in Width, 13-3/4 in Depth
This is the 2.5 to 3 ton single speed PSC 208/230 V blower moduleThe Unico System modular blowers are designed for use with the Unico System small-duct high-velocity (SDHV) system The blowers exceed the U.S. Department of Energy requirements for SDHV systems requiring a minimum external static pressure of 1.2 in-WC (0.3 kPa) at the rated airflow when installed with the compatible Unico cooling module Balanced wheels Direct drive motor Shaft key connection Quick motor replacement Separate control box Control voltage transformer
