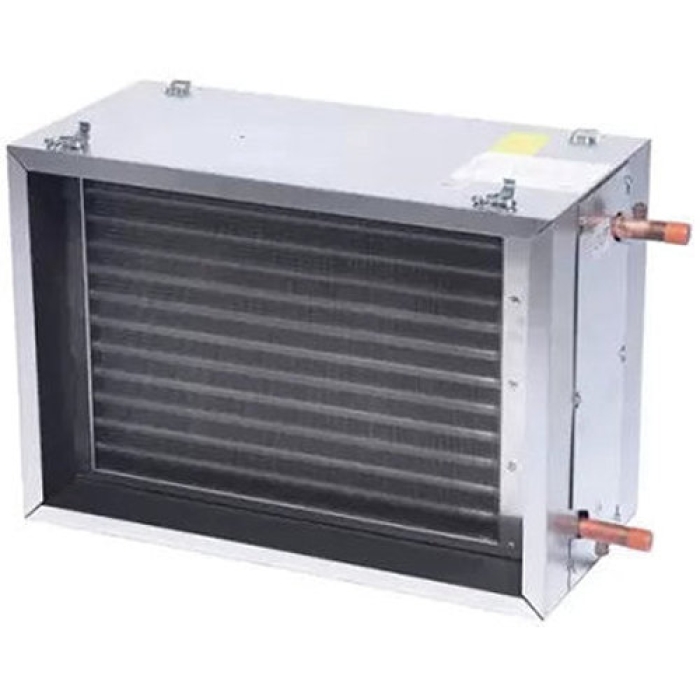

The Unico System® M Series M3036CL1-H Hot Water Coil Module, 2.5 to 3 ton, 36000 Btu/hr BTU, 17-1/2 in H, 30 in W
The Unico System® M Series M3036CL1-H Hot Water Coil Module, 2.5 to 3 ton, 36000 Btu/hr BTU, 17-1/2 in H, 30 in W

The Unico System® M Series M3036CL1-H Hot Water Coil Module, 2.5 to 3 ton, 36000 Btu/hr BTU, 17-1/2 in H, 30 in W

The Unico System® M Series M3036CL1-H Hot Water Coil Module, 2.5 to 3 ton, 36000 Btu/hr BTU, 17-1/2 in H, 30 in W

Manufacturer: The Unico System
Brand: The Unico System®
Part #: 58825
MPN: M3036CL1-H
CPN:
BTU Rating      :      36000 Btu/hr
Depth      :      12 in
For Use With      :      3036 Air Handlers
Height      :      17-1/2 in
Packaged Depth      :      38 in
Packaged Height      :      19 in
Packaged Width      :      16 in
Product Family      :      M Series
Shipping Weight      :      76 lb
Tonnage      :      2.5 to 3 ton
Width      :      30 in

The Unico System® Hot Water Coil Module, 36000 Btu/hr, 17-1/2 in Height, 30 in Width, 12 in Depth, For Use With: 3036 Air Handlers, Product Family: M Series

Modular construction
  • Multiple configurations
  • Enhanced aluminum fins
  • Copper tubes
  • Fully lined with closed cell insulation
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/The_Unico_System_M3036CL1_H_Specification_Sheet.pdf
