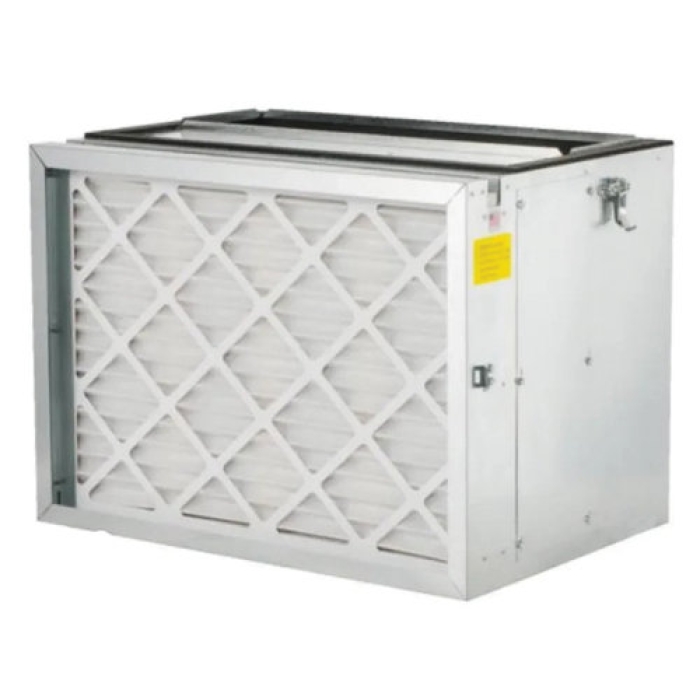

The Unico System® M3036V2 Vertical Plenum Module, 30 in H, 17-1/2 in W, 18-1/4 in D
The Unico System® M3036V2 Vertical Plenum Module, 30 in H, 17-1/2 in W, 18-1/4 in D

The Unico System® M3036V2 Vertical Plenum Module, 30 in H, 17-1/2 in W, 18-1/4 in D

The Unico System® M3036V2 Vertical Plenum Module, 30 in H, 17-1/2 in W, 18-1/4 in D

Manufacturer: The Unico System
Brand: The Unico System®
Part #: 82044
MPN: M3036V2
CPN:
Depth      :      18-1/4 in
Height      :      30 in
Packaged Depth      :      27 in
Packaged Height      :      20 in
Packaged Width      :      34 in
Product Type      :      Plenum Module
Shipping Weight      :      45 lb
Width      :      17-1/2 in

The Unico System® Vertical Plenum Module, 17-1/2 in Width, 18-1/4 in Depth

This is the 2.5 to 3 ton vertical plenum module with secondary drain pan
  • It is a base with a filter rack and filter that can house a hot water coil as an option
  • Room for optional hot water coil with access from both sides
  • Centrally located pleated filter
  • Heavy-duty closed cell insulation (no exposed fiberglass insulation)
  • Standard Unico System 'latch' system
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/The_Unico_System_M3036V2_Specification_Sheet.pdf
