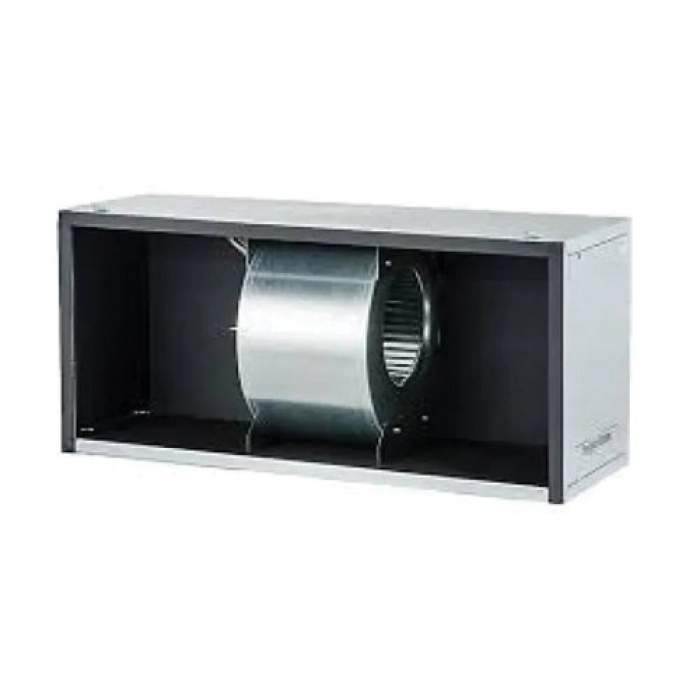

The Unico System® M3642BL2-ST2 Blower Module, Compatible Unit Tonnage: 3 to 3.5 ton, 230 V, 1 ph, 38 in L
The Unico System® M3642BL2-ST2 Blower Module, Compatible Unit Tonnage: 3 to 3.5 ton, 230 V, 1 ph, 38 in L

The Unico System® M3642BL2-ST2 Blower Module, Compatible Unit Tonnage: 3 to 3.5 ton, 230 V, 1 ph, 38 in L

The Unico System® M3642BL2-ST2 Blower Module, Compatible Unit Tonnage: 3 to 3.5 ton, 230 V, 1 ph, 38 in L

Manufacturer: The Unico System
Brand: The Unico System®
Part #: 61554
MPN: M3642BL2-ST2
CPN:
Compatible Unit Tonnage      :      3 to 3.5 ton
Depth      :      13-3/4 in
Installation / Mounting Type      :      Horizontal, Vertical
Length      :      38 in
Motor Type      :      PSC
Packaged Depth      :      38 in
Packaged Height      :      18 in
Packaged Width      :      14 in
Phase      :      1 ph
Product Type      :      Blower Module
Shipping Weight      :      100 lb
Voltage Rating      :      230 V
Width      :      17-1/2 in

The Unico System® Blower Module, 230 V, 1 ph Phase, Horizontal, Vertical Installation / Mounting, 38 in Length, 17-1/2 in Width, 13-3/4 in Depth

This is the 3 to 3.5 tonsingle speed PSC 208/230 V blower module
  • The Unico System modular blowers are designed for use with the Unico System small-duct high-velocity (SDHV) system
  • The blowers exceed the U.S. Department of Energy requirements for SDHV systems requiring a minimum external static pressure of 1.2 in-WC (0.3 kPa) at the rated airflow when installed with the compatible Unico cooling module
  • Modular construction
  • Multiple configurations
  • Single speed motor (PSC)
  • Easy service motor/blower
    • Full Engineering Drawing https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/The_Unico_System_M3642BL2_ST2_Full_Engineering_Drawing.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/The_Unico_System_M3642BL2_ST2_Specification_Sheet.pdf
    • videoVideo Link https://www.youtube.com/watch?v=taRTcP472Vk
