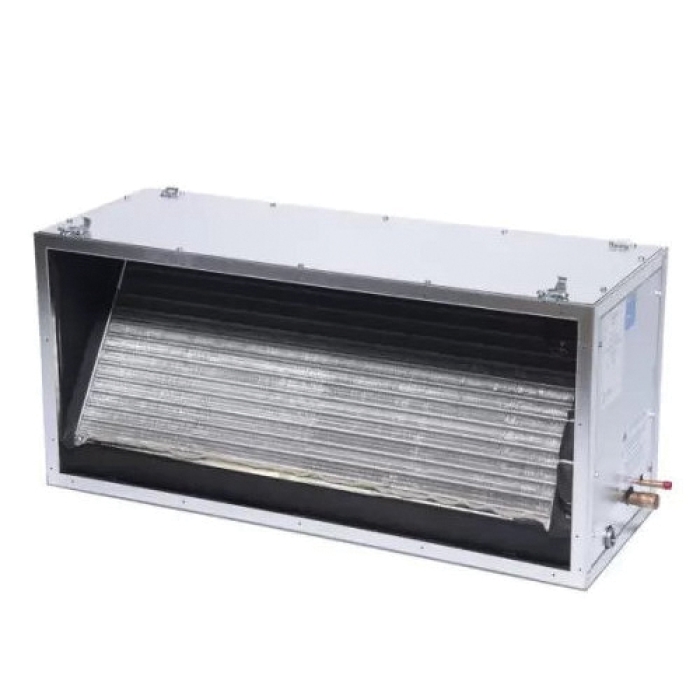

The Unico System® M Series M3642CL1-BA-R Refrigerant Coil Module, 3 to 3.5 ton, 38 in W, 17-1/2 in H, 13.8 in D
The Unico System® M Series M3642CL1-BA-R Refrigerant Coil Module, 3 to 3.5 ton, 38 in W, 17-1/2 in H, 13.8 in D

The Unico System® M Series M3642CL1-BA-R Refrigerant Coil Module, 3 to 3.5 ton, 38 in W, 17-1/2 in H, 13.8 in D

The Unico System® M Series M3642CL1-BA-R Refrigerant Coil Module, 3 to 3.5 ton, 38 in W, 17-1/2 in H, 13.8 in D

Manufacturer: The Unico System
Brand: The Unico System®
Part #: 95147
MPN: M3642CL1-BA-R
CPN:
Coil Material      :      Copper
Depth      :      13.8 in
Drain Pan Material      :      Stainless Steel
Height      :      17-1/2 in
Packaged Depth      :      42 in
Packaged Height      :      20 in
Packaged Width      :      16 in
Product Family      :      M Series
Shipping Weight      :      100 lb
Tonnage      :      3 to 3.5 ton
Width      :      38 in

The Unico System® Refrigerant Coil Module, 38 in Width, 17-1/2 in Height, 13.8 in Depth, Copper Coil, Stainless Steel Drain Pan Material, Product Family: M Series

This is the 3 to 3.5 ton module, refrigerant coil (4 Row) (AC/HP), aluminum, for indoor coil replacement only
  • Unico System designed and built evaporator coil modules can be easily installed with the matching Unico System blower modules
  • The evaporator can be matched to most types of remote condensing units and heat pumps
  • All Unico refrigerant coils can be used for both heat pump and A/C only applications
  • Modular construction
  • Multiple configurations
  • Use as cooling only or heat pump
  • Enhanced aluminum fins
  • Copper tubes
  • Stainless steel drain pan
    • Full Engineering Drawing https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/The_Unico_System_M3642CL1_B_Full_Engineering_Drawing.pdf
