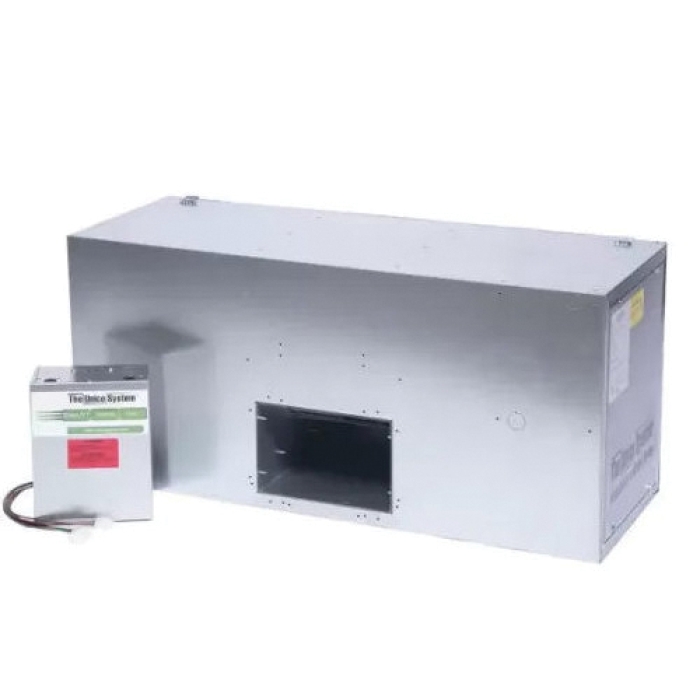

The Unico System® M4860BL2-EC2 Blower Module, Compatible Unit Tonnage: 4 to 5 ton, 120/208/230 V, 1 ph, 38 in L
The Unico System® M4860BL2-EC2 Blower Module, Compatible Unit Tonnage: 4 to 5 ton, 120/208/230 V, 1 ph, 38 in L
Manufacturer: The Unico System
Brand: The Unico System®
Part #: 95208
MPN: M4860BL2-EC2
CPN:
| Compatible Unit Tonnage | : | 4 to 5 ton |
| Depth | : | 13.7 in |
| Installation / Mounting Type | : | Horizontal, Vertical |
| Length | : | 38 in |
| Motor Type | : | ECM |
| Packaged Depth | : | 42 in |
| Packaged Height | : | 20 in |
| Packaged Width | : | 16 in |
| Phase | : | 1 ph |
| Product Type | : | Blower Module |
| Shipping Weight | : | 151 lb |
| Voltage Rating | : | 120/208/230 V |
| Width | : | 17-1/2 in |
The Unico System® Blower Module, 120/208/230 V, 1 ph Phase, Horizontal, Vertical Installation / Mounting, 38 in Length, 17-1/2 in Width, 13.7 in Depth
All TXVs are R410-A with chatleff fitting - module, blower, S.M.A.R.T. control, variable speed EC motor, 120/208/230 VThe Unico System modular blowers are designed for use with the Unico System small-duct high-velocity (SDHV) system The blowers exceed the U.S. Department of Energy requirements for SDHV systems requiring a minimum external static pressure of 1.2 in-WC (0.3 kPa) at the rated airflow when installed with the compatible Unico cooling module The variable speed EC motor has the best efficiency and control, removes up to 4X more humidity, as well as providing the quietest option Balanced blower wheels for smooth, vibration-free operation Direct drive motor for improved efficiency Shaft key connection Separate control box Control voltage transformer Screw terminal connections Heat pump AFS bypass Boiler relay to connect a hot water heating source Six (6) modes of operation Adjustable low airflow mode Efficient ventilation mode Point-to-point wiring Electric heater fan interlock Electric heater stage 3 lockout protection Chilled water relay for connecting to a chilled water source Fan cycling EAC, ERV, or HRV relay
