The Unico System® V Series V3642B-1EC2BXC1 Vertical Air Handler, 3 to 3.5 ton, R-32, R-454B Refrigerant, 120/208/230 V
The Unico System® V Series V3642B-1EC2BXC1 Vertical Air Handler, 3 to 3.5 ton, R-32, R-454B Refrigerant, 120/208/230 V
Manufacturer: The Unico System
Brand: The Unico System®
Part #: 95196
MPN: V3642B-1EC2BXC1
CPN:
| BTU Cooling Rating | : | 42000 Btu/hr |
| CFM Airflow | : | 900 cfm |
| Depth | : | 29.3 in |
| Height | : | 44.1 in |
| Liquid Line Size | : | 3/8 in |
| Motor Type | : | ECM |
| Nominal Supplemental Electric Heat (kW) | : | 12.3 kW |
| Number of Rows | : | 3 |
| Packaged Depth | : | 31 in |
| Packaged Height | : | 46 in |
| Packaged Width | : | 26 in |
| Phase | : | 1 ph |
| Product Family | : | V Series |
| Refrigerant Type | : | R-32, R-454B |
| Shipping Weight | : | 215 lb |
| Sound Level | : | 56 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3 to 3.5 ton |
| Voltage Rating | : | 120/208/230 V |
| Width | : | 23.8 in |
The Unico System® Vertical Air Handler, R-32, R-454B Refrigerant, 120/208/230 V, 1 ph Phase, 42000 Btu/hr Cooling, 900 cfm, 23.8 in Width, 44.1 in Height, 29.3 in Depth, 3/8 in Liquid Line, 3/4 in Suction Line, ECM Motor, 12.3 kW Nominal Supplemental Electric Heat, 56 dBA Sound Level

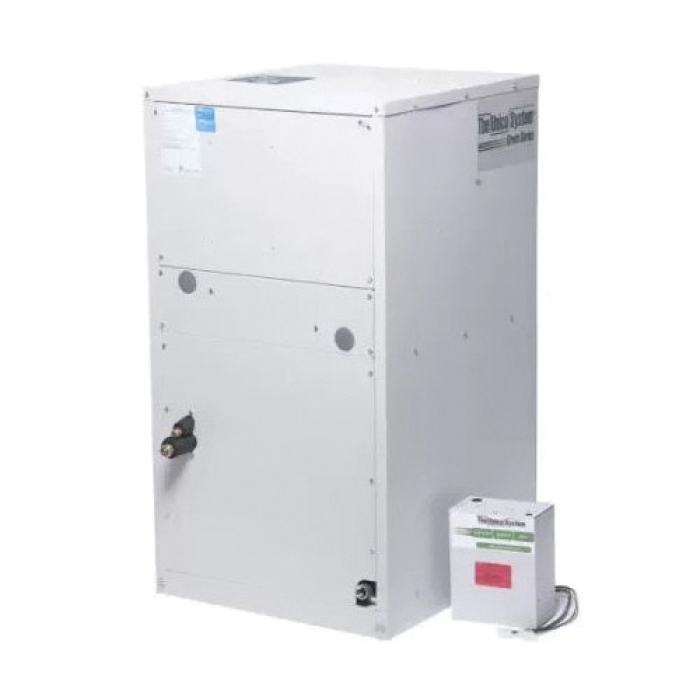

This is our V-Series one piece fan coil unit for vertical up flow applications in a closet or basementThis model is our 3 to 3.5 ton model with 230 V ECM blower and cooling DX coil which includes a R-32/R-454B and a hot water coil It can be connected to a 3 ton or 3.5 ton condensing unit from a third party Easy service EC motor (variable speed) Removable access panels for ease of service Use as cooling only or heat pump Heavy-duty closed cell insulation (no exposed fiberglass insulation)
