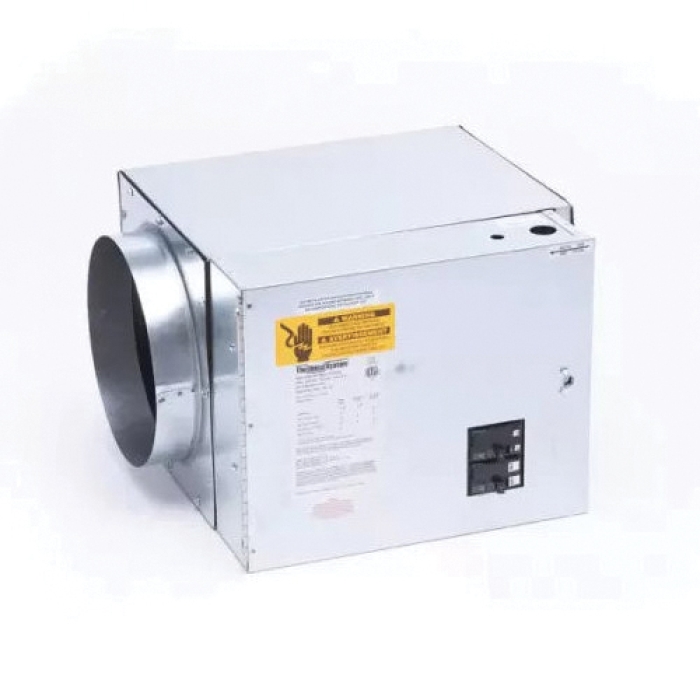

The Unico System® WON0752-C Electric Furnace, 25590 Btu/hr Input Heating BTU, 240 V, 300 cfm, 16 in W, 12 in H, 16 in D
The Unico System® WON0752-C Electric Furnace, 25590 Btu/hr Input Heating BTU, 240 V, 300 cfm, 16 in W, 12 in H, 16 in D

The Unico System® WON0752-C Electric Furnace, 25590 Btu/hr Input Heating BTU, 240 V, 300 cfm, 16 in W, 12 in H, 16 in D

The Unico System® WON0752-C Electric Furnace, 25590 Btu/hr Input Heating BTU, 240 V, 300 cfm, 16 in W, 12 in H, 16 in D

Manufacturer: The Unico System
Brand: The Unico System®
Part #: 57894
MPN: WON0752-C
CPN:
BTU Heating Input      :      25590 Btu/hr
CFM Airflow      :      300 cfm
Depth      :      16 in
Height      :      12 in
Packaged Depth      :      16 in
Packaged Height      :      29 in
Packaged Width      :      20 in
Phase      :      1 ph
Shipping Weight      :      29 lb
Voltage Rating      :      240 V
Width      :      16 in

The Unico System® Electric Furnace, 240 V, 300 cfm, 16 in Width, 12 in Height, 16 in Depth, 1 ph Phase

This electric furnace module can be attached directly to one of our blower units or it can be installed in the supply air duct downstream from the blower unit as a duct heater
  • This model is rated for 7.5 kw at 240 V single phase
  • The heater contains 1 circuit breaker as a disconnect and one 15 A breaker to power the blower unit
  • There are multiple safety's built in such as a pressure air proving switch, fan relay switch, auto temperature limit and fuse links
  • The heater comes with a 10 in round start collar and a 11-1/2 in square start collar
  • NEW (Revision C) more efficient DC contactors
  • NEW (Revision C) full disconnection when off
  • Galvanized insulated sheet metal cabinet enclosure
  • Can be converted to a duct heater
  • Magnetic de-energizing contactors for each element
  • Line level auto limit primary safety set at 165 deg F
  • Line level fuse link back-up safety
  • Fan interlock control, fan signal proving switch
  • Low air flow pressure switch
  • Circuit breakers on all units
  • Time delay sequencers for a gradual "stepped" power draw (softer start)
  • Low voltage terminal strip (24 V control)
  • Specially designed tight cabinet for small duct, high velocity systems
  • Single Supply (all units) or dual supply (15 and 20 kW)
