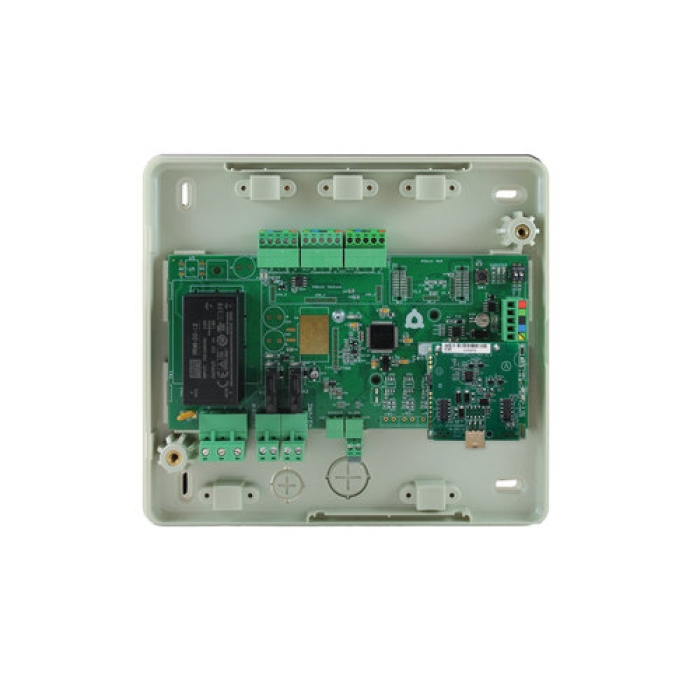

VAF AZVAFCB2LGE Control Board With LG Communication, 110/230 V, 250 mA, 50/60 Hz, Wall Installation/Mounting, 7.1 in H
VAF AZVAFCB2LGE Control Board With LG Communication, 110/230 V, 250 mA, 50/60 Hz, Wall Installation/Mounting, 7.1 in H
Manufacturer: Airzone USA Corp
Brand: VAF
Part #: 88865
MPN: AZVAFCB2LGE
CPN:
| Amperage Rating | : | 250 mA |
| Depth | : | 2.185 in |
| Frequency | : | 50/60 Hz |
| Function Type | : | Control Board |
| Height | : | 7.1 in |
| Installation / Mounting Type | : | Wall |
| Product Type | : | Control Board |
| Voltage Rating | : | 110/230 V |
| Width | : | 7.67 in |
Configurable electronic board with a communication gateway, that controls the system through wired and wireless devices. Externally powered at 110/230 VAC. Wall mounted.
VAF Control Board, 110/230 V, 250 mA, 50/60 Hz Frequency, Wall Installation / Mounting, 7.1 in Height, 7.67 in Width, 2.185 in Depth
Controls the status of the thermostats (up to 10 zones)Controls the proportionality and the minimum air supply of the dampers Control of optional auxiliary heat (up to two stages) Management of the control gateway Communication with units of integral control of the installation Communications with other external control systems through integration bus
