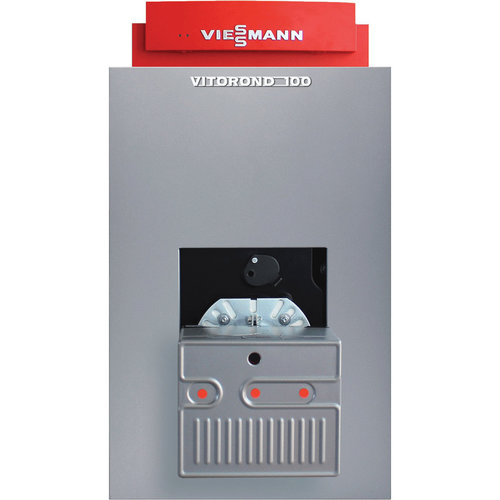

VIESSMANN® VR1 Series 7249048 Oil-Fired Boiler, 91000 Btu Input Heating BTU, 80000 Btu Output Heating BTU, 87 % AFUE
VIESSMANN® VR1 Series 7249048 Oil-Fired Boiler, 91000 Btu Input Heating BTU, 80000 Btu Output Heating BTU, 87 % AFUE

VIESSMANN® VR1 Series 7249048 Oil-Fired Boiler, 91000 Btu Input Heating BTU, 80000 Btu Output Heating BTU, 87 % AFUE

VIESSMANN® VR1 Series 7249048 Oil-Fired Boiler, 91000 Btu Input Heating BTU, 80000 Btu Output Heating BTU, 87 % AFUE

Manufacturer: Viessmann Manufacturing Company
Brand: VIESSMANN®
Part #: 74880
MPN: 7249048
CPN:
AFUE      :      87 %
BTU Heating Input Rating      :      91000 Btu
BTU Heating Output Rating      :      80000 Btu
Condensing      :      No
Depth      :      38-1/2 in
Energy Star Certified      :      No
Height      :      33 in
Inlet Connection Size      :      1-1/2 in
Model Number      :      Vitorond 100
Outlet Connection Size      :      1-1/2 in
Product Family      :      VR1 Series
Product Weight      :      363 lb
Vent Type      :      Direct
Voltage Rating      :      24 V
Width      :      19-3/4 in

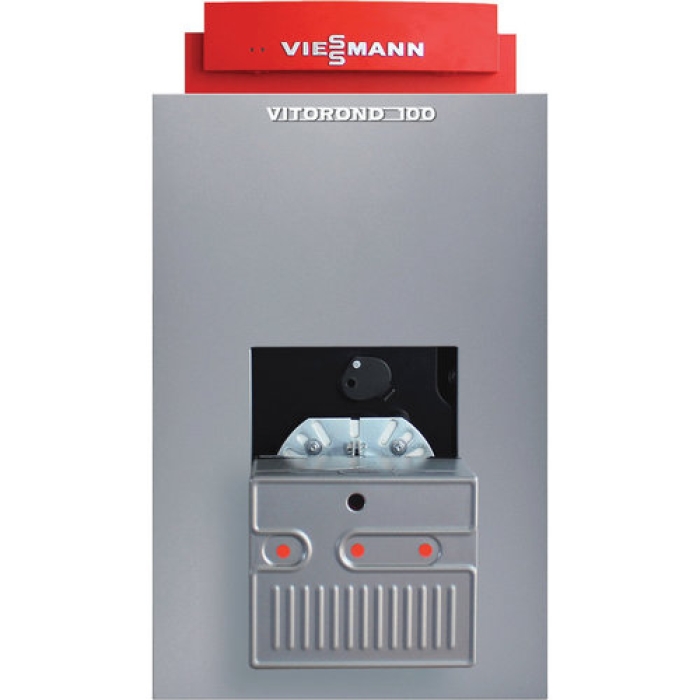

Vitorond 100 is a genuine triple-pass oil-fired boiler of cast iron sectional design. Rated input: 91 to 245 MBH.

VIESSMANN® Oil-Fired Boiler, 91000 Btu Heating Input, 80000 Btu BTU Heating Output, 87 % AFUE, Condensing: No, 24 V, Direct Vent, 1-1/2 in Inlet Connection, 1-1/2 in Outlet Connection, 33 in Height, 19-3/4 in Width, 38-1/2 in Depth, Energy Star Certified: No

Maximum heat extraction - and efficiency thanks to the triple-pass heat exchanger
  • Flexible installation - no need for a chimney and combustion air supply opening with the direct vent option (VR1 models 91 to 140)
  • Long service life - and maximum reliability with extremely durable cast iron heat exchanger
  • Low maintenance cost - with service-friendly burner and easy-to-clean flue gas passageways
  • Clean and efficient combustion - with stainless steel combustion chamber insert
  • Quiet operation - with Beckett or Riello burner
  • Ideal for radiator, baseboard, indirect domestic hot water heating, and in some cases, in-floor heating
  • Thick 3-1/2 in insulation for extremely low standby losses and fuel savings
  • Spacious, wet-base water walls prevent deposits, reduce stress and increase boiler life
  • Multiple control options: choose from a standard 24VAC room thermostat or Vitotronic control options for additional energy savings
  • Simple service and maintenance with full-swing left- or right-hinged combustion chamber door
  • Sectional design ensures problem-free transport into difficult-to-access boiler rooms
