VIESSMANN® B2HA Series 7554705 Gas-Fired Condensing Boiler, Liquid Propane, Natural Gas Fuel, 92 % AFUE, 120 V, 19 in W
VIESSMANN® B2HA Series 7554705 Gas-Fired Condensing Boiler, Liquid Propane, Natural Gas Fuel, 92 % AFUE, 120 V, 19 in W

VIESSMANN® B2HA Series 7554705 Gas-Fired Condensing Boiler, Liquid Propane, Natural Gas Fuel, 92 % AFUE, 120 V, 19 in W

VIESSMANN® B2HA Series 7554705 Gas-Fired Condensing Boiler, Liquid Propane, Natural Gas Fuel, 92 % AFUE, 120 V, 19 in W

Manufacturer: Viessmann Manufacturing Company
Brand: VIESSMANN®
Part #: 71332
MPN: 7554705
CPN:
AFUE      :      92 %
BTU Heating Input Rating      :      285000 Btu
BTU Heating Output Rating      :      260000 Btu
Condensing      :      Yes
Depth      :      21 in
Fuel Type      :      Liquid Propane, Natural Gas
Gas Connection Size      :      1 in
Height      :      43-1/2 in
Installation / Mounting Type      :      Wall
Model Number      :      Vitodens 200-W
Product Family      :      B2HA Series
Product Weight      :      194 lb
Vent Type      :      Direct
Voltage Rating      :      120 V
Width      :      19 in

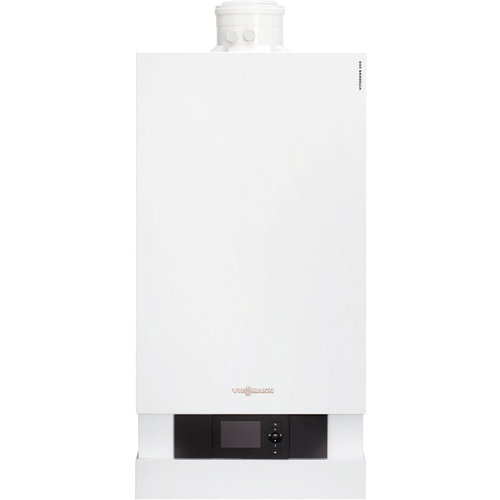

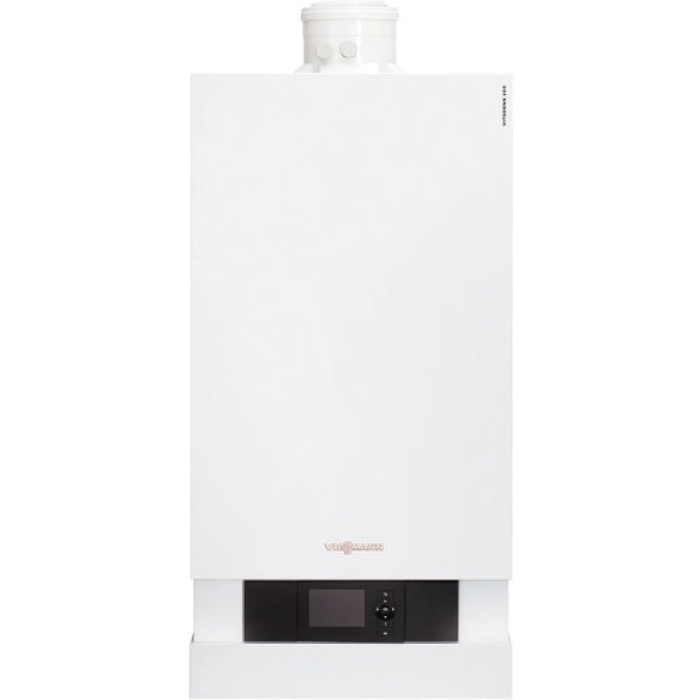

Vitodens 200-W is a gas-fired, wall-mounted condensing boiler with modulating cylinder burner and heat exchanger made of stainless steel. Rated input: 71 to 530 MBH.

VIESSMANN® Gas-Fired Condensing Boiler, 285000 Btu Heating Input, 260000 Btu BTU Heating Output, 92 % AFUE, Condensing: Yes, 120 V, Direct Vent, 1 in Gas Connection, Wall Installation / Mounting, 43-1/2 in Height, 19 in Width, 21 in Depth

Outstanding efficiency - up to 95% AFUE rating, and modulation ratio up to 6.5:1
  • Extended application range - with increased capacity up to 530 MBH (single boiler) or 4240 MBH as a cascade of 8 boilers
  • Mobile ViCare app available - stay connected with your boiler by adding the Vitoconnect WiFi module (sold separately)
  • Intelligent combustion system - automatically adjusts to gas quality
  • Fuel flexibility - uses natural gas or liquid propane - no fuel conversion kit required
  • Venting flexibility - multiple venting options and flexibility with vent length up to 180 ft
  • Best value in its class with new industry-leading technology and the most standard features
  • Intelligent Lambda Pro gas management system automatically adjusts to different gas qualities for optimum efficiency and performance
  • Compact, lightweight design and zero clearance to combustibles
  • Efficiency up to 98% at full modulation and up to 95% AFUE
  • Low-emission combustion for environmentally-friendly operation
  • Extremely quiet operation; quieter than most refrigerators
