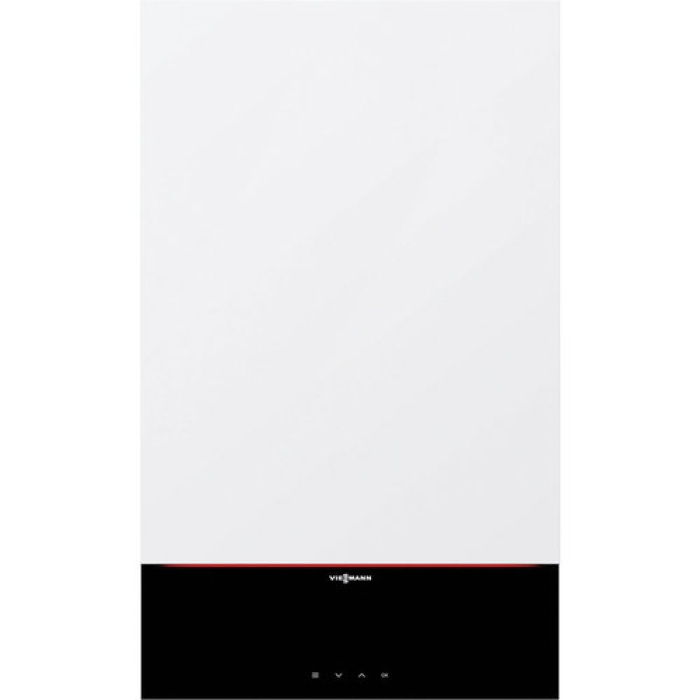

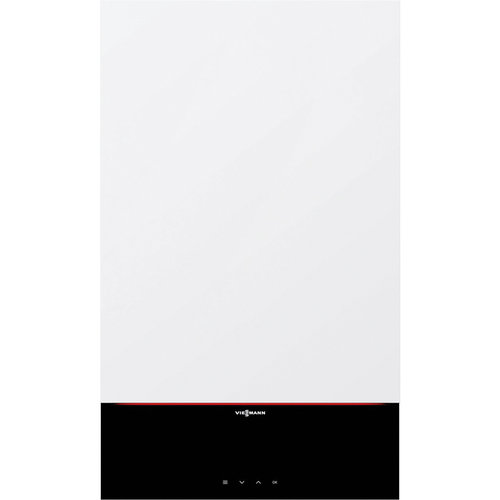

VIESSMANN® B1KE Series 7722777 Gas-Fired Condensing Boiler, Liquid Propane, Natural Gas Fuel, 95 % AFUE, 1 ph, 120 V
VIESSMANN® B1KE Series 7722777 Gas-Fired Condensing Boiler, Liquid Propane, Natural Gas Fuel, 95 % AFUE, 1 ph, 120 V
Manufacturer: Viessmann Manufacturing Company
Brand: VIESSMANN®
Part #: 86987
MPN: 7722777
CPN:
| AFUE | : | 95 % |
| BTU Heating Input Rating | : | 199000 Btu |
| BTU Heating Output Rating | : | 187000 Btu |
| Condensing | : | Yes |
| Depth | : | 21-3/4 in |
| Energy Star Certified | : | Yes |
| Fuel Type | : | Liquid Propane, Natural Gas |
| Gas Connection Size | : | 3/4 in |
| Height | : | 39 in |
| Installation / Mounting Type | : | Wall |
| Low NOX | : | Yes |
| Model Number | : | Vitodens 100-W |
| Phase | : | 1 ph |
| Product Family | : | B1KE Series |
| Product Weight | : | 190 lb |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 V |
| Width | : | 17-3/4 in |
Vitodens 100-W is a gas-fired wall-mounted condensing boiler with modulating MatriX-Plus cylinder burner and Inox-Radial heat exchanger made of stainless steel. Rated input - 8.5 to 199 MBH.
VIESSMANN® Gas-Fired Condensing Boiler, 199000 Btu Heating Input, 187000 Btu BTU Heating Output, 95 % AFUE, Condensing: Yes, 1 ph Phase, 120 V, Direct Vent, 3/4 in Gas Connection, Wall Installation / Mounting, 39 in Height, 17-3/4 in Width, 21-3/4 in Depth, Energy Star Certified: Yes, Low NOX: Yes
Smart home ready - mobile ViCare app and WiFi connectivity includedEasy installation and service - all pipe connections located at the bottom and serviceable components accessible from the front Highly efficient - 95% AFUE rating on all models Fuel flexibility - uses natural gas or liquid propane - no mechanical adjustments required Compact, lightweight design - and zero clearance to combustibles make it a great choice for limited-space installations Multiple venting options and venting flexibility with vent length up to 180 ft (60 m) Fits any home and budget with high performance at an attractive price Lasting performance with proven Viessmann titanium-stabilized stainless steel Inox-Radial heat exchanger Easy piping due to two sets of tappings, along with built-in pump and diverter Suitable for high altitudes up to 10000 ft (3000 m) with no power loss and automatic software vent length adjustment Reliable on-demand domestic hot water with Vitodens 100-W, B1KE combi models Low-emission combustion for environmentally-friendly operation. Less than 20 ppm NOx (at 3% O2) Fully-modulating input with 10:1 turn-down ratio eliminates energy waste Extremely quiet operation; quieter than most refrigerators
