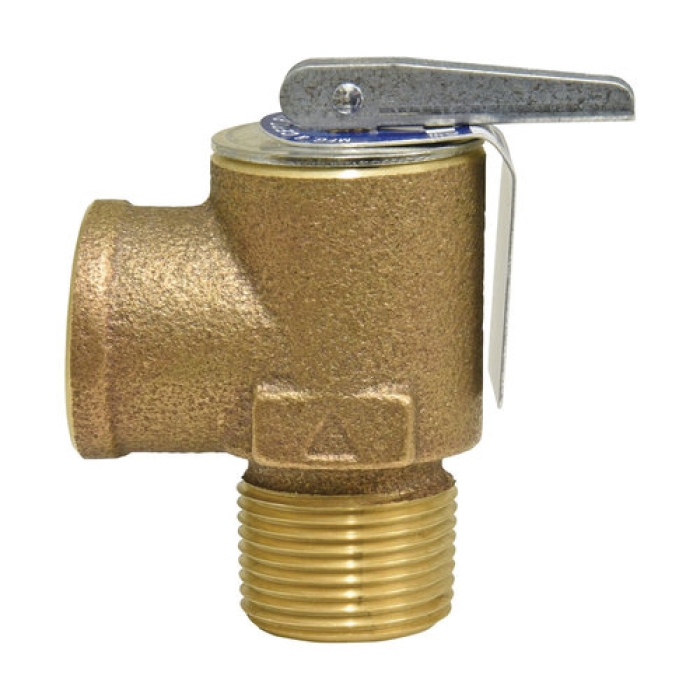

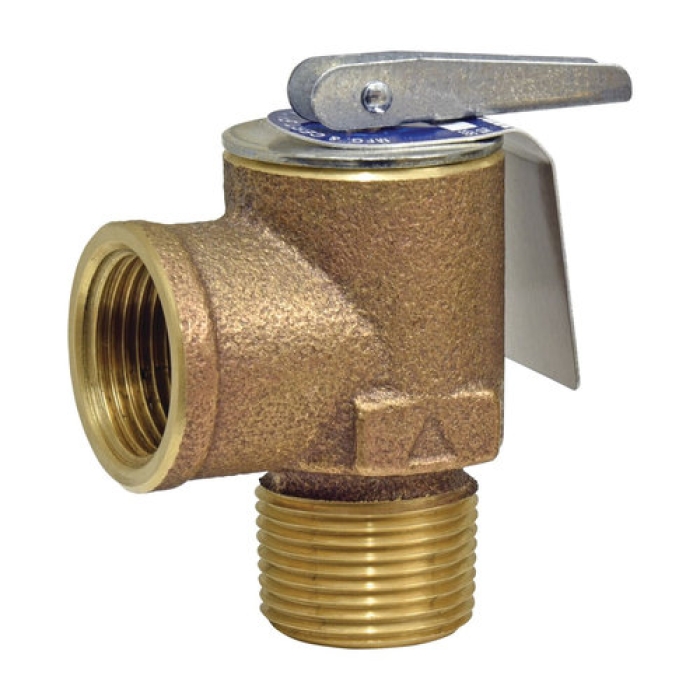

WATTS® 335 Series 0342692 Boiler Pressure Relief Valve, 3/4 in x MNPT x FNPT, Bronze Body, 30 psi Max Working Pressure
WATTS® 335 Series 0342692 Boiler Pressure Relief Valve, 3/4 in x MNPT x FNPT, Bronze Body, 30 psi Max Working Pressure
Manufacturer: Watts Water Technologies
Brand: WATTS®
Part #: 90552
MPN: 0342692
CPN:
| Body Material | : | Bronze |
| Connection Size | : | 3/4 in |
| Connection Type | : | MNPT x FNPT |
| Function Type | : | Pressure Relief Valve |
| Maximum Operating Temperature | : | 250 deg F |
| Maximum Working Pressure | : | 30 psi |
| Media / Fluid Type | : | Water |
| Product Family | : | 335 Series |
| Product Type | : | Pressure Relief Valve |
| Width | : | 2-3/4 in |
This 3/4 inch pressure safety relief valve is used in commercial and industrial applications for low pressure, steam heating boilers and process equipment. It consists of a bronze body construction with NPT threaded male inlet and threaded female outlet (drain) connection, stainless steel spring, a top-guided stem, and a non-stick Teflon® disc-to-metal seating. The pressure relief is set at 30 psi (2.1 bar).
WATTS® Boiler Pressure Relief Valve, 3/4 in Connection, MNPT x FNPT Connection, Bronze Body, 30 psi Maximum Working Pressure, Water Media / Fluid, 250 deg F Maximum Operating, 2-3/4 in Width
High heat resisting silicone discPositive shut off ASME Section IV at 30 psi set point Seat located above drain
