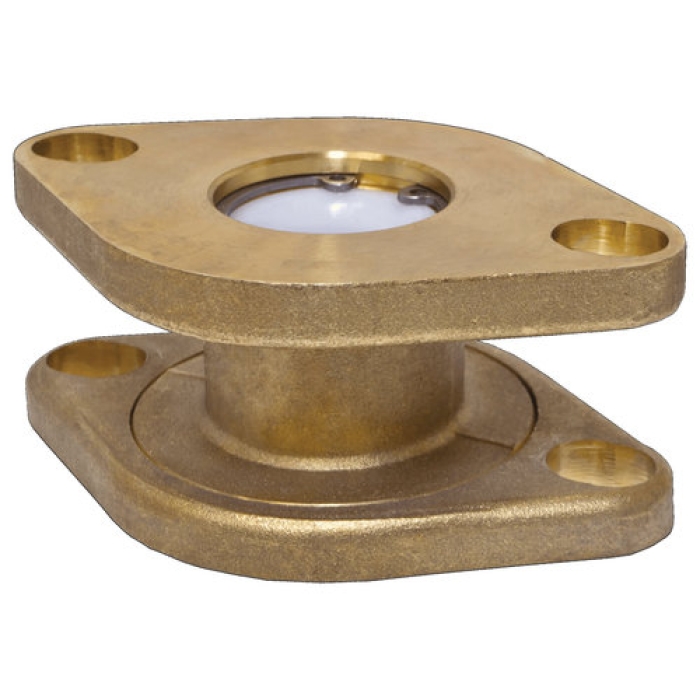

Webstone 1370 Series H-13706HV Isolator Double Flanged Check Valve, 1-1/2 to 2 in Inlet, 1-1/2 to 2 in Outlet, NBR Seal
Webstone 1370 Series H-13706HV Isolator Double Flanged Check Valve, 1-1/2 to 2 in Inlet, 1-1/2 to 2 in Outlet, NBR Seal
Manufacturer: NIBCO Inc
Brand: Webstone
Part #: 56691
MPN: H-13706HV
CPN:
| Body Material | : | Brass |
| Flow Coefficient | : | 66.6 Cv |
| Flow Rate | : | 55 to 120 gpm |
| Inlet Connection Size | : | 1-1/2 to 2 in |
| Inlet Connection Type | : | Flanged |
| Length | : | 4-3/16 in |
| Maximum Working Pressure | : | 150 psi |
| NSF Specifications | : | NSF/ANSI 61 |
| Operating Temperature Rating | : | 200 deg F |
| Outlet Connection Size | : | 1-1/2 to 2 in |
| Outlet Connection Type | : | Rotating Flange |
| Package Quantity | : | 10 Case |
| Product Family | : | 1370 Series |
| Seal Material | : | NBR |
Webstone Isolator Double Flanged Check Valve, 1-1/2 to 2 in Inlet Connection, 1-1/2 to 2 in Outlet Connection, Flanged Inlet Connection, Rotating Flange Outlet Connection, Brass Body, NBR Seal, 150 psi Maximum Working Pressure, 55 to 120 gpm Flow Rate, 66.6 Cv Flow Coefficient, 4-3/16 in Length, 200 deg F Operating Temperature, NSF Specifications: NSF/ANSI 61, Product Family: 1370 Series

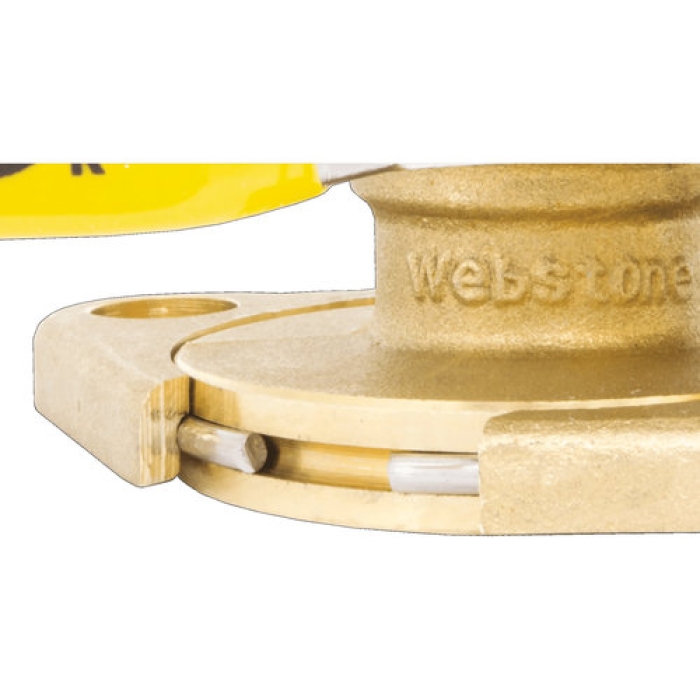

Adds a Check Valve to Any PumpInstalls Between the Pump and Isolator Operates in a Horizontal or Vertical Position Features One of the Largest Flow Rates Available Anywhere 360 Degree Rotating Flange is Secured by a Snug-Fit Snap-Ring That Provides Greater Control Over Positioning During Installation Saves Time Replaces Components Eliminates Leak Paths
