| Body Material | : | Brass |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | FIP x MIP |
| Connection Type 2 | : | FIP x Hose |
| Function Type | : | Service Valve |
| Height | : | 3.38 in |
| Maximum Operating Temperature | : | 250 deg F |
| Maximum Working Pressure | : | 600 CWP |
| Media / Fluid Type | : | Glycol Mixture, Oil, Water |
| Operator Type | : | Lever Handle |
| Package Quantity | : | 30 Case |
| Product Family | : | Pro-Pal® 4167 Series |
| Product Type | : | Service Valve |

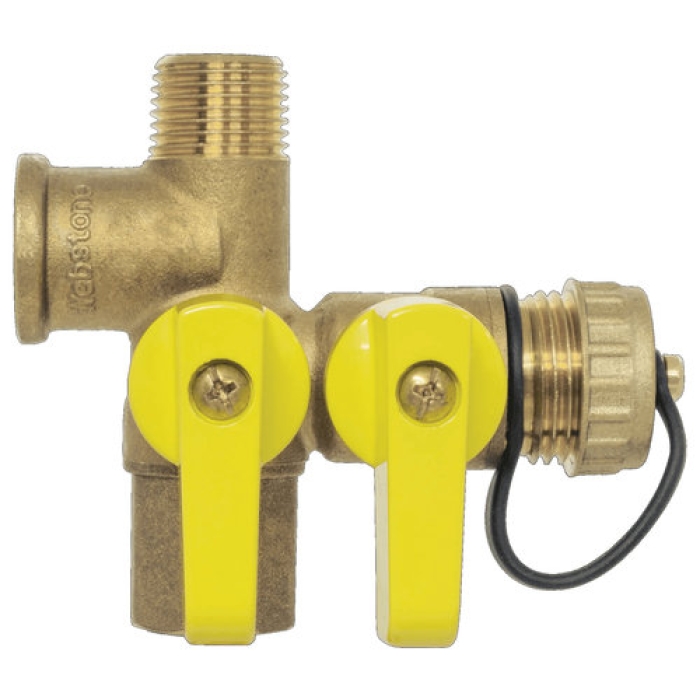

Webstone Pro-Pal® Expansion Tank Pro Service Valve, 1/2 in Connection Size 2, Connection Type 1: FIP x MIP, Connection Type 2: FIP x Hose, Brass Body, 600 CWP Maximum Working Pressure, Lever Handle Operator, Glycol Mixture, Oil, Water Media / Fluid

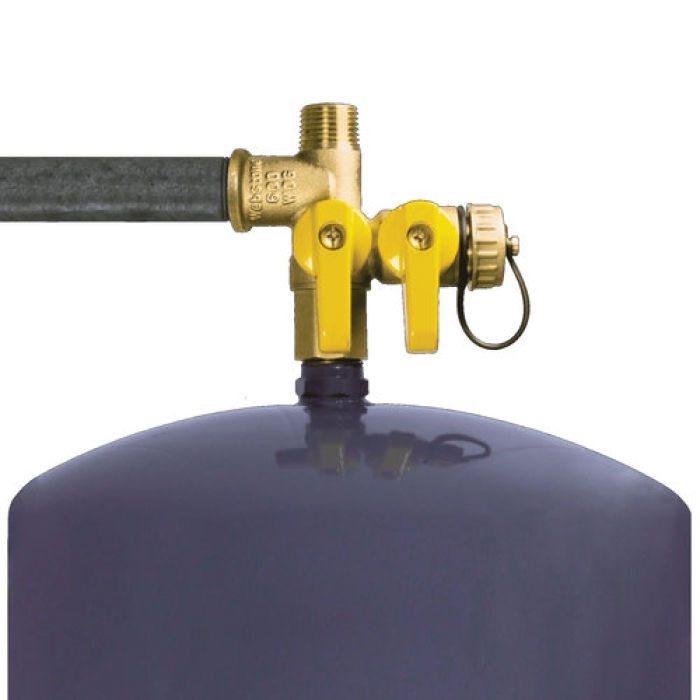

Allows for Isolation and Draining of an Expansion Tank in a Closed Loop Hydronic Heating System3-Way Ball Controls Flow Between the Expansion Tank and the System Easily Install, Isolate, Drain and Replace Any Expansion Tank Quickly Connect Entire System to the Cold Water Feed MIP Model for Direct Connection to Air Separator or Tee Saves 36 Minutes Replaces 5 Components Eliminates 4 Leak Paths
